Hardinge Bridgeport Series I Milling Machine
Hardinge Bridgeport Series I Milling Machine
SKU:MIL-b301ce
Explore the industry-leading Hardinge Bridgeport Series I Milling Machine, offering precision, reliability, and durability for diverse machining needs.
Regular price
$21,699.99
Regular price
Sale price
$21,699.99
Unit price
per
Initiate Order
Hardinge Bridgeport Series I Milling Machine
$21,699.99
Quantity: 1
Claim Your Seller Account
Hardinge Bridgeport Series I Milling Machine
$21,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

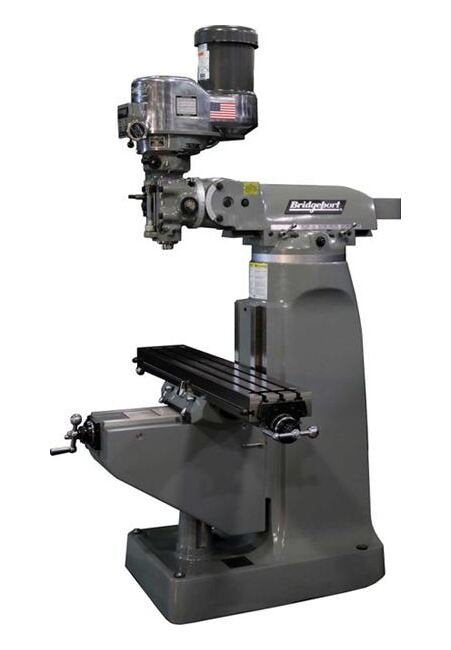

The Hardinge Bridgeport Series I Standard Knee Mill, a renowned milling, drilling, and boring machine, boasts over 70 years of industry excellence with 370,000+ machines produced. Designed for precision and versatility, it features an innovative airflow cooling system for extended bearing life. With optional chrome-plated ways and gibs and a range of accessories, this machine ensures durability and performance. Hardinge is the sole authorized provider of Bridgeport knee mills, parts, and services.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
One-Shot LubricationSystemChrome-Plated Ways and GibsColorâMachine Tool Gray2 or 3-Axis Digital ReadoutPower Drawbar for R-8 or #30; Quick-Change SpindlePower Drawbar for R-8 or #30; Quick-Change SpindleWorklight ElectricsâNFPA/NEMA-12 Standards, UL listed
Note Note
You must specify voltage at checkout208V 60HZ230V 60HZ460V 60HZ
Technical Specs Alternating Current Ac Power Rating For Spindle
2 hp | 1.5 kW
Technical Specs Brands
Bridgeport Milling Machine
Technical Specs Floor Space
7 x 10 in | 2.13 x 3.0 mm
Technical Specs Height
87 in | 2210 mm
Technical Specs Height Above Floor Maximum
47.25 in | 1200 mm
Technical Specs Knee Travel Z Axis
16 in | 406 mm
Technical Specs Low Spindle Speeds
60 to 500 rpm
Technical Specs Maximum Weight Of Workpiece
750 lb | 340 kg
Technical Specs Power Quill Feed
0.0015 in/rev | 0.038 mm
Technical Specs Saddle Travel Y Axis
12 in | 305 mm
Technical Specs Speed Range Manual Adjust
0.003 in/rev | 0.006 in/rev | 0.076 mm | 0.152 mm
Technical Specs Spindle Speeds
500 to 4200 rpm
Technical Specs Table Size
9 x 49 in
Technical Specs Table Travel X Axis Without Power Feed
31 in | 787 mm
Technical Specs Table Travel X Axis With Power Feed
36 in | 914 mm
Technical Specs Table T Slot Size
0.625 in | 16 mm
Technical Specs Throat Distance Maximum
18.75 in | 476 mm
Technical Specs Throat Distance Minimum
6.75 in | 171 mm
Technical Specs Weight
1930 lb | 875 kg
Technical Specs Work Table
1245 x 299 mm
