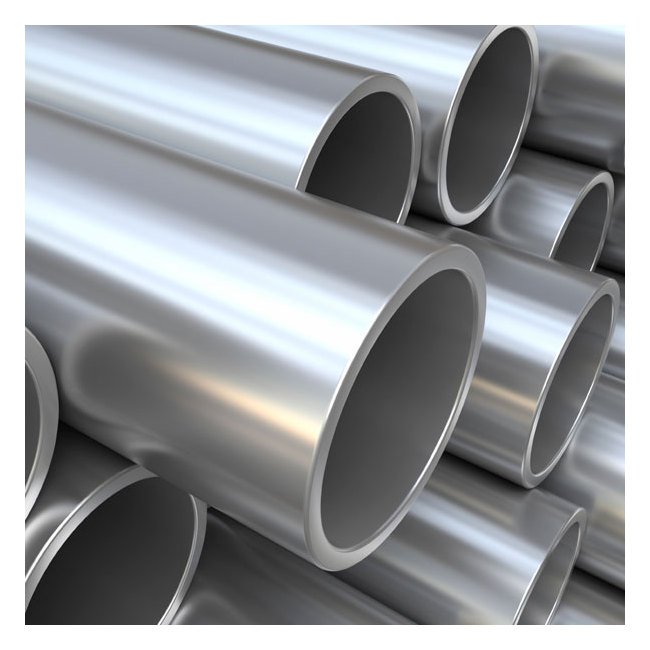

Hastelloy C22 Alloy Pipe - 5 Inch Sch. 80 Seamless/Welded
Hastelloy C22 Alloy Pipe - 5 Inch Sch. 80 Seamless/Welded
SKU:NIC-21f325
Durable and corrosion-resistant Hastelloy C22 Alloy Pipe for high-performance applications.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Hastelloy C22 Alloy Pipe - 5 Inch Sch. 80 Seamless/Welded
$75.99
Quantity: 1
Claim Your Seller Account
Hastelloy C22 Alloy Pipe - 5 Inch Sch. 80 Seamless/Welded
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hastelloy C22 Alloy Pipe, also known as Inconel 22 or Hastelloy C22, is a fully austenitic nickel-based superalloy known for its exceptional corrosion resistance properties. This highly ductile pipe is suitable for various industries requiring superior performance in corrosive environments, such as chemical processing, oil and gas, and nuclear fuel reprocessing. With a nickel base and a composition tailored for anti-corrosion and high-temperature applications, this pipe offers reliability and durability. Available in seamless or welded form, ranging from 1/8" to 26" sizes.
Product Specifications
Additional Information Additional Information
Common applications include chemical processing, paper and pulp, oil and gas, pesticide production, sour gas services, and waste incinerators. Providing considerable resistance at elevated temperatures, Inconel® 22 has been adopted for nuclear fuel reprocessing, flue gas desulfurization and seawater-based applications.With the nickel as its primary base, Inconel® 22 alloy includes a chemical composition of 20-22.5% Cr, 12.5-14.5% Mo, a maximum of 2.5% Co, 2.5-3.5% W, and 2-6% Fe. For annealing treatment, temperature ranges should remain between 2020 and 2150 ºF. Inconel® 22 is suited for applications that require superior performance at elevated temperatures and for its full spectrum of anti-corrosion characteristics.
Nickel Alloy Compositions Alloy
Alloy C22
Nickel Alloy Compositions Astm Specification
ASME Code Case 2226 | ASME Code Case N-621 | ASME SB 619/SB 775 | ASME SB 622/SB 829 | ASME SB 626/SB 751 | ASTM B 619/B 775 | ASTM B 622/B 829 | ASTM B 626/B 751 | DIN 17751 | ISO 6207
Nickel Alloy Compositions Density
8.69 g/cm³ | 0.314 lbs/in³
Specifications Material
Hastelloy®
Specifications Nominal Diameter Metric
125 mm
Specifications Nominal Diameter Standard
5 inches
Specifications Od
5.563 inches | 141.3002 mm
Specifications Shapeform
Pipe
Specifications Thickness
Sch. 80
