Hayward 1-1/2" PVC Simplex Basket Strainer w/EPDM Seal
Hayward 1-1/2" PVC Simplex Basket Strainer w/EPDM Seal
SKU:CAS-a003c7
Protect system components with the Hayward 1-1/2" PVC Simplex Basket Strainer w/EPDM Seal & Flanged Ends. Ensure efficient flow & durability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Hayward 1-1/2" PVC Simplex Basket Strainer w/EPDM Seal
$129.99
Quantity: 1
Claim Your Seller Account
Hayward 1-1/2" PVC Simplex Basket Strainer w/EPDM Seal
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hayward 1-1/2" PVC Simplex Basket Strainer with EPDM seal and flanged end connections is a reliable solution for protecting pipeline system components from dirt and debris. Featuring a perforated strainer basket, this strainer effectively traps unwanted particles while allowing smooth flow for the process media. With a pressure rating of 150 psi at 70°F, this PVC basket strainer is designed for durability and performance. Ideal for applications where basket cleaning is essential, it ensures system efficiency and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accuglide Ii Taping Head 0

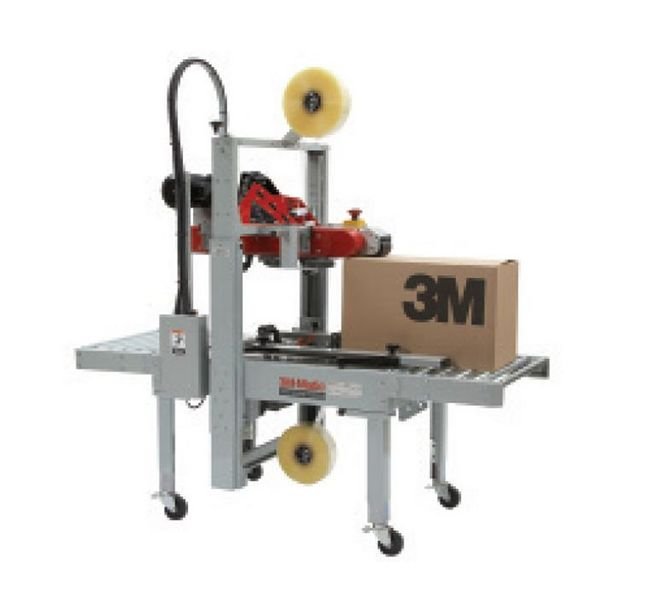

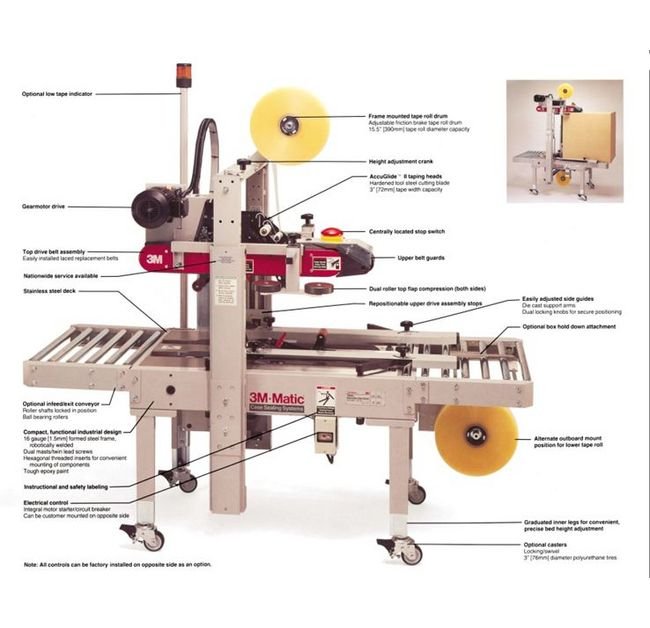

3M's advanced, low impact AccuGlide⢠II Taping Head with its curvilinear track insures that even lightweight corrugated cartons are securely and carefully sealed. Provides positive tape starting and precise tape application. The tape head floats smoothly and easily to adjust for overpacked boxes. Applies Standard 2.75 inch [70mm] tape leg lengths. Can be converted to apply 2.00 inch [51mm] leg lengths. And a built-in blade oiler helps prevent adhesive buildup. The head comes with a ninety days warranty on knife blades, springs and rollers and a three year warranty on all other parts.
Box Capacities Max Box Height
36 in | 914 mm
Box Capacities Max Box Length
No Limit
Box Capacities Max Box Width
25.5 in | 650 mm
Box Capacities Max Weight Range
5 lbs | 85 kg
Box Capacities Min Box Height
4 in | 102 mm
Box Capacities Min Box Length
6 in | 150 mm
Box Capacities Min Box Width
7 in | 175 mm
Box Capacities Min Weight Range
3 lbs | 38 kg
Limitation Of Liability 0
3M and seller shall not be liable for direct, indirect, special incidental or consequential damages based upon breach of warranty, breach of contract negligence strict liability or any other legal theory.The foregoing Equipment Warranty and Limited Remedy and limitation of Liability may be charged only by a written agreement signed by authorized officers of 3M and seller.
Machine Specifications Cord Length
8 ft | 2.7 m
Machine Specifications Core Diameter
3 in | 76 mm
Machine Specifications Crated Weight
425 lbs | 190 kg
Machine Specifications Current
5.8 A
Machine Specifications Drive Belt Speed
75 ft/min | 38 m/s
Machine Specifications Frequency
60 Hz
Machine Specifications Machine Dim A
17 in | 432 mm
Machine Specifications Machine Dim C
4.75 in | 121 mm
Machine Specifications Machine Dim F
29 in | 737 mm
Machine Specifications Machine Dim L
42.5 in | 1080 mm
Machine Specifications Machine Dim W
33.75 in | 857 mm
Machine Specifications Max Machine Dim B
31 in | 787 mm
Machine Specifications Max Machine Dim H
91.5 in | 2324 mm
Machine Specifications Max Tape Width
3 in | 76 mm
Machine Specifications Min Machine Dim B
20.5 in | 521 mm
Machine Specifications Min Machine Dim H
49.5 in | 1257 mm
Machine Specifications Min Tape Width
2 in | 50 mm
Machine Specifications Operating Rate
Up to 30 boxes per minute depending on the case length and operator dexterity.
Machine Specifications Power
675 W
Machine Specifications Tape Roll Diameter
15.5 in | 390 mm
Machine Specifications Uncrated Weight
375 lbs | 170 kg
Machine Specifications Voltage
115 V
Note 0
This technical information and data should be considered representative or typical only and should not be used for specification purposes.The 3M-Matic⢠Top and Bottom Drive Belt Adjustable King Size Case Sealer 700aks can accommodate most boxes within the size range listed here.However, if:(Box Length in Direction of Seal) / (Box Height)is less than 0.5Boxes should be test run to ensure proper machine performance.All controls can be factory installed on opposite side as an option.
Operating Conditions 0
Use in dry, relatively clean environments at 40 ºF to 120 ºF (4.4 ºC to 48.9 ºC) with clean, dry boxes. Machine should not be washed down or subjected to conditions causing moisture condensation on components.
Options 0
Box hold down attachment | Infeed and exit conveyors | Locking casters | Low tape indicator
Specifications Bursting Test
125 to 275 lbs. per sq. inch single or double wall, B or C flute.
Specifications Manufacturer
3M
Specifications Packing
Contents must support flaps.
Specifications Style
Regular slotted container (RSC)
Specifications Tape
3M Scotch⢠brand pressure sensitive box sealing tapes.
