Hayward 4" PVC CVH Ball Valve Flanged with EPDM O-Rings
Hayward 4" PVC CVH Ball Valve Flanged with EPDM O-Rings
SKU:TRU-620a1a
Efficient 4" PVC CVH Ball Valve with EPDM O-Rings for proportional flow. Reliable, easy actuation, and compliant with NSF/ANSI standards.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Hayward 4" PVC CVH Ball Valve Flanged with EPDM O-Rings
$229.99
Quantity: 1
Claim Your Seller Account
Hayward 4" PVC CVH Ball Valve Flanged with EPDM O-Rings
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

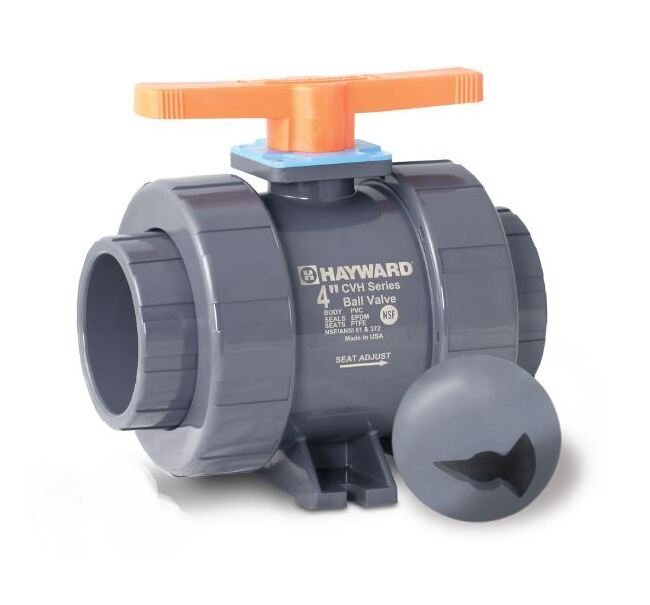

The Hayward 4" PVC CVH Ball Valve with Flanged End Connection and EPDM O-Rings is part of the CVH Series Profile 2, designed for proportional flow configurations. It features two linear flow curves, one for fast opening and one for slow opening, providing versatility. With a pressure rating of 150 PSI, ISO 5211 Top Flange for easy actuation, and NSF/ANSI 61 and NSF/ANSI 372 Listings, this valve ensures reliable performance and compliance with industry standards. The System2™ Sealing Technology, ergonomic handle, and lockout/tagout mechanism enhance safety and efficiency in municipal, industrial, and environmental applications.
Product Specifications
Key Features And Benefits 0
System2⢠Sealing Technology provides longer cycle life for sizes up to 2"/DN50250 PSI / 16 Bar for sizes 1/2" - 2" / 235psi/16Bar for sizes 2-1/2" - 4", non-shock at 70°F/23°C full pressure ratingConsistent operating torque with adjustment-free designLockout/Tagout mechanism that secures directly to valve body for enhanced safetyErgonomic handle for improved grip and comfortISO mounting flange simplifies actuationPermanent markings, eliminates labelsIntegral footpad for skid or panel mountFPM or EPDM sealsDouble O-Ring stem sealsReversible PTFE seats â standardEasy replacement for existing Hayward TB/CV SeriesNSF/ANSI 61 and NSF/ANSI 372 Listed
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 (Handle & Lock Plate)
Options And Accessories 0
Pneumatic or Electric Actuators Stem Extensions Manual Limit Switch or Spring Return Handle
Sample Specification 0
All Proportional Control ball valves sizes 1/2" â 2â to be manufactured with PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454) or CPVC (ASTM D1784, Cell Classification 23447). All sizes shall be of true union design. Valve body shall have an integral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Valve to include as standard a sliding lock-out plate that interlocks with integral flange on body for lock-out / tag-out, with four locations for attaching a padlock. Body shall incorporate molded in foot pad for panel or rail mounting. Valves to have a tapered V- port ball design for characterized flow, allowing slow open or fast open operation of the valve and bidirectional installation. Valves 2" and smaller shall have a floating ball and System2⢠seat carrier design that moves with the seat to affect a double seal to flow through a closed valve, and require no adjustment. Sizes 2-1/2â through 6â shall have energized PTFE seats with backing o-ring as standard. All seats for shall be reversible to allow field rebuild. All o-rings shall be EPDM or FPM. The handle shall be retained without any metal fasteners and made from GFPP with UV Inhibitor. Stem shall contain double o-rings, and shall be blowout-proof design. Valve stem shall be designed to shear above the top stem o-ring groove, retaining the pressure retaining integrity of the valve in the unlikely event of a stem torsion failure. All 1/4" - 2" ball valves shall be pressure-rated for 250 PSI at 70°F non-shock. Sizes 2-1/2â â 4â valves shall be pressure rated for 235psi at 70°F non-shock. All sizes of ANSI 150 lb. flanged ball valves shall be pressure-rated for 150 PSI at 70°F non-shock. All PVC and CPVC valves to be NSF/ANSI 61 and NSF/ANSI 372 Listed. All ball valves shall carry a Global 3- Year warranty, and shall be manufactured by Hayward® Flow Control and in the USA.
Specifications Cv Coefficient
600.0
Specifications End Connection
Flanged
Specifications Flow Configuration
Bi-directional
Specifications Handle Material
GFPP
Specifications Operating Pressure Max
150 psi
Specifications O Ring Material
EPDM
Specifications Seat Material
PTFE
Specifications Series
CVH
Specifications Size
4"
Specifications Valve Material
PVC
Specifications Weight
26.6 lb
Applications 0
Typical applications or installations include but are not limited to municipal waste and water treatment, clean water technology, chemical transfer and processing, aquatic and animal life support systems, mining and mineral processing, metal plating / surface finishing, marine, pulp and paper, landfills / environmental infrastructure and other demanding applications.
