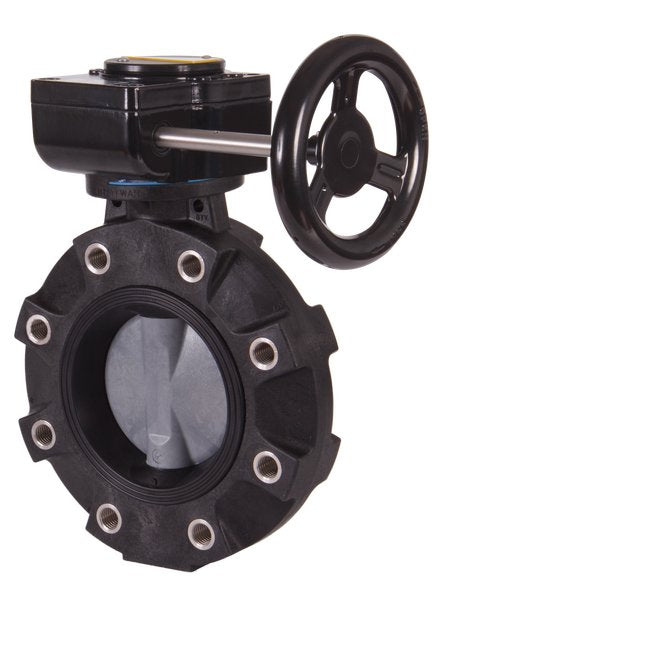

Hayward Gear Operated Butterfly Lugged Valve
Hayward Gear Operated Butterfly Lugged Valve
SKU:BUT-428928
Hayward Gear Operated Butterfly Lugged Valve - Reliable, Durable, Precise. Ideal for Institutional Buyers.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Hayward Gear Operated Butterfly Lugged Valve
$299.99
Quantity: 1
Claim Your Seller Account
Hayward Gear Operated Butterfly Lugged Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hayward Gear Operated Butterfly Lugged Valve from the BYV Series is engineered to meet the stringent requirements of institutional and government buyers. Constructed with high-quality materials such as GFPP body and disc, EPDM seals, and 316SS stem, this valve ensures durability and reliability in diverse applications. With an ISO 5211 top flange, hydro-dynamic centric disc design, and over-molded 316 stainless steel lugs, it ensures optimal performance and ease of installation. Ideal for water treatment, chemical processing, and marine environments, this valve offers a 150 PSI pressure rating, meeting ANSI B16.10 standards. Explore the full range of options including gear operators and pneumatic actuators for tailored solutions.
Product Specifications
Key Features Benefits And Advantages 0
One Piece Body and Disc in PVC, CPVC and GFPP MaterialsRevolutionary Hand Lever with 19 Lockable Stop Positions and 360° InterlockExternal Disc Position and Flow IndicationHydro-dynamic Centric Disc Design for Increased Flow PerformanceOver-Sized Liner Face Maximizes Surface Contact with FlangesEPDM, Viton® or Nitrile Liners1-Piece 316 Stainless Steel Stem with Threaded Retaining GlandStem Bearing and Seal Retainer for Absolute Stem Positioning and SealingISO 5211 Top Flange and Stem DriveAll Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
Materials 0
PVC per ASTM D1784 Cell Class 12454CPVC per ASTM D1784 Cell Class 23447GFPP per ASTM D4101 Cell Class 85580EPDM, Viton® and Nitrile Liners
Options 0
Over-Molded or Field Mountable 316 Stainless Steel LugsGear OperatorsComplete Range of Pneumatic or Electric ActuatorsStem Extensions2" Square Operating NutChain Operator for Gear Box
Sample Specification 0
All thermoplastic wafer-style butterfly valves shall be manufactured from PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454), CPVC(ASTM D1784, Cell Classification 23447) or glass filled Polypropylene (ASTM D4101, Cell Classification 85580). All valve bodies shall containintegral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Bodies shall contain fully-supported flange bolt holes,be one piece construction and meet ANSI B16.10 narrow face-to-face dimensions in all sizes. If LUGGED butterfly valves are required, lugsshall be over-molded, 316 stainless steel and be the full width of the body. Liners shall be EPDM, Viton® or Nitrile. Liner shall be FULL BOOTdesign, and shall be retained in the body via rib and groove engagement. Liner shall serve as primary disc seal and face seals for mating flanges.Secondary upper bearing and lower seal retainer o-ring seals to be EPDM or FPM. Stem shall be 316 stainless steel, non-wetted and providefull engagement over length of disc. Stem shall have position retention design.Sizes 10" and 12" will be gear-operated as standard. Gear operators will be availablefor all sizes of valves as needed. All sizes of butterfly valves (2" through 12") shall be pressure-rated for 150 PSI at 70°F non-shock.All butterfly valves shall carry a three-year warranty, and shall be manufactured by Hayward Flow Control products in the USA.
Specifications Body Material
GFPP
Specifications Disc Material
GFPP
Specifications Flow Coefficient Cv
190
Specifications Liner Material
EPDM
Specifications Medium Temperature Range
70 ºF | 21 ºC
Specifications Method Of Operation
Gear
Specifications Pressure Rating At 70f
150 psi | 10 bar
Specifications Seal Material
EPDM
Specifications Stem Material
316SS
Specifications Valve Size
2 1/2 in
Specifications Weight
6.7 lb | 3.0 kg
Applications 0
Water and Wastewater TreatmentAquatic and Animal Life Support SystemsChemical Processing and HandlingMarine and Corrosive EnvironmentsMiningMetal Plating and Surface FinishingLandfills / Environmental InfrastructureWater / Theme Parks
