Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal
Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal
SKU:STR-525e33
Protect your system with the Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal, ensuring efficient filtration and easy maintenance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal
$79.99
Quantity: 1
Claim Your Seller Account
Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hayward SB Series 3/4" PVC Simplex Basket Strainer with FPM Seal is a reliable solution for protecting pipeline system components from dirt and debris. Featuring a durable PVC body and FPM seal, this strainer ensures efficient filtration while allowing the process media to flow unhindered. With socket/threaded end connections and a standard basket perf of 1/32", this Hayward basket strainer offers ease of installation and maintenance. Designed for institutional and government procurement needs, this product meets stringent industry standards for performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

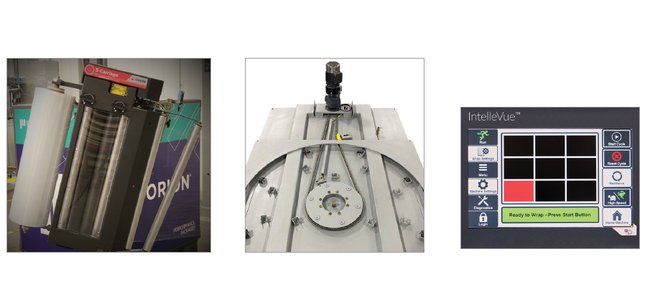

The S-Carriage:One of biggest advances in film carriage technology, the S-Carriage which in addition to a consistent film-saving 260% prestretch, further maximizes film yield another 5 to 15% by reducing film neckdown (width reduction). Film-force-to-load corners compensation ensures consistent load stabilizing film tension that won't crush corners.S-Carriage InstaThread⢠Film Delivery SystemThe unique roller pattern provides over 180% of film-to-roller contact, ensuring consistent 260% film-saving prestretch, as well as fully utilizing film width for additional savings. Provides the most secure loads at the lowest possible cost.Robust Ring Bearing Support6,000 lb. maximum load capacity, and no casters which are prone to wear and maintenance needs. Downtime is reduced. Available for field retrofit applications.7" IntelleVue HMIUser-friendly, password protected touch screen controls with up to 9 different wrap recipes.
General Features General Features
7" IntelleVue color, HD touch screen HMIPremium efficiency AC motors with 15 RPM variable speed "soft start"Revo-Logic technology for precise film application with maximum load containment and film yield6,000 lb. maximum load capacity - Orion®'s universal base removes casters (wear items) for a robust ring bearing and allows the HPD & LPD to be field retrofit to automatic performance (HPA & HPD).Film saving 260% powered film pre-stretchAutomatic force to load for even film tensionMax load height 80"- standard, 110" - optional
Note Note
ProMach reserves the right to change or discontinue specifications without notice or recourse.
Options Options
Integrated scaleExtended mast - 110"Extended base for oversized loadsInsta-Cut Automatic Film Web SeveranceSpecial Load Height Photocell for dark/opaque loads30" film carriageDual turntables
Shipping Weight And Dimensions Shipping Dimensions
4 x 8 x 8.5 ft
Shipping Weight And Dimensions Shipping Weight
1,650 lb
Specific Features Specific Features
48" x 48" turntable for loads up to 55" x 55"Octagonal turntable for easy forklift loading
Product Specifications Current
20 A
Product Specifications Display
7" color IntelleVue HMI
Product Specifications Frame
Heavy-Duty Welded Tubular Steel
Product Specifications Frequency
60 Hz
Product Specifications Height
80 in
Product Specifications Note For Electrical
Electrical Service (Not suitable for GFIC)
Product Specifications Phase
1
Product Specifications Product Type
Turntable Semi-Automatic Stretch Wrapping Machines
Product Specifications Speed
15 rpm
Product Specifications Voltage
115 V
