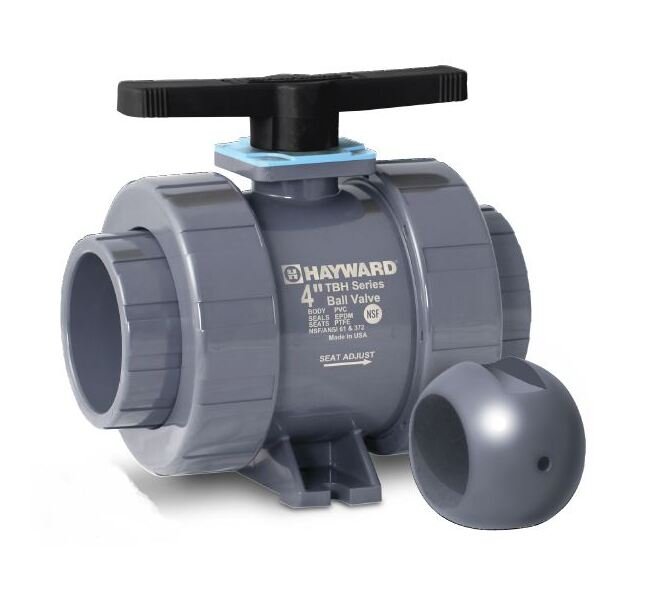

The Hayward TBH-Z Series CPVC True Union Ball Valve is designed for precision flow control, featuring System2™ Sealing Technology for longer cycle life. It is pressure rated @250 PSI for sizes up to 2" and 235 PSI for sizes 2-1/2" to 4", making it perfect for municipal water treatment, chemical processing, and marine applications. This valve is equipped with ISO mounting flange, lockout/tagout mechanism, reversible PTFE seats, and FPM O-rings, ensuring durability and safety. NSF/ANSI 61 and NSF/ANSI 372 Listed for quality and compliance.
Product Specifications
Key Features And Benefits 0
System2⢠Sealing Technology provides longer cycle life for sizes up to 2"/DN50250 PSI / 16 Bar for sizes 1/2" - 2" / 235psi/16Bar for sizes 2-1/2" - 4", non-shock at 70°F/23°C full pressure ratingConsistent operating torque with adjustment-free designLockout/Tagout mechanism that secures directly to valve body for enhanced safetyErgonomic handle for improved grip and comfortISO mounting flange simplifies actuationPermanent markings, eliminates labelsIntegral footpad for skid or panel mountFPM or EPDM sealsDouble O-Ring stem sealsReversible PTFE seats â standardEasy replacement for existing Hayward TB/CV SeriesNSF/ANSI 61 and NSF/ANSI 372 Listed
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 (Handle & Lock Plate)
Options And Accessories 0
Pneumatic or Electric Actuators Stem Extensions Manual Limit Switch or Spring Return Handle
Sample Specification 0
All VENTED thermoplastic ball valves for sodium hypochlorite service in sizes 1/2" â 2â to be manufactured with PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454) or CPVC (ASTM D1784, Cell Classification 23447). All sizes of shall be of true union design. Valve body shall have an integral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Valve to include as standard a sliding lock-out plate that interlocks with integral flange on body for lock-out / tag-out, with four locations for attaching a padlock. Body shall incorporate molded in foot pad for panel or rail mounting. Valves to have a vented ball design with a vent hole drilled into one side to vent in the upstream direction. Balls must be full-port design and fully spherical on the sealing sides. Valves 2" and smaller shall have a floating ball and System2⢠seat carrier design that moves with the seat to affect a double seal to flow through a closed valve, and require no adjustment. Sizes 2-1/2â through 6â shall have energized PTFE seats with backing O-ring as standard. All seats for shall be reversible to allow field rebuild. All o-rings shall be FPM only. Valves shall have a black color tee handle only for all vented ball valves for easy identification when installed. The handle shall be retained without any metal fasteners and made from black GFPP with UV Inhibitor. Stem shall contain double o-rings, and shall be blowout-proof design. Valve stem shall be designed to shear above the top stem o-ring groove, retaining the pressure retaining integrity of the valve in the unlikely event of a stem torsion failure. All 1/4" - 2" ball valves shall be pressure-rated for 250 PSI at 70°F non-shock. Sizes 2-1/2â â 4â valves shall be pressure rated for 235psi at 70°F non-shock. All sizes of ANSI 150 lb. flanged ball valves shall be pressure-rated for 150 PSI at 70°F non-shock. All PVC and CPVC valves to be NSF/ANSI 61 and NSF/ANSI 372 Listed. All ball valves shall carry a Global 3- Year warranty, and shall be manufactured by Hayward® Flow Control and in the USA.
Specifications Cv Coefficient
340
Specifications End Connection
Threaded
Specifications Flow Configuration
Bi-directional
Specifications Operating Pressure Max
16 bar | 235 psi
Specifications O Ring Material
FPM
Specifications Seat Material
PTFE
Specifications Series
TBH-Z
Specifications Size
2-1/2"
Specifications Valve Material
CPVC
Specifications Weight
5.08 kg | 11.2 lb
Applications 0
Typical applications or installations include but are not limited to municipal waste and water treatment, clean water technology, chemical transfer and processing, aquatic and animal life support systems, mining and mineral processing, metal plating / surface finishing, marine, pulp and paper, landfills / environmental infrastructure and other demanding applications.
