HC-2 Thermal Fluid Heater - Energy Efficient Heating Solution
HC-2 Thermal Fluid Heater - Energy Efficient Heating Solution
SKU:THE-421a6e
Efficient, reliable, and versatile thermal fluid heater for industrial heating needs.
Regular price
$21,999.00
Regular price
Sale price
$21,999.00
Unit price
per
Initiate Order
HC-2 Thermal Fluid Heater - Energy Efficient Heating Solution
$21,999.00
Quantity: 1
Claim Your Seller Account
HC-2 Thermal Fluid Heater - Energy Efficient Heating Solution
$21,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

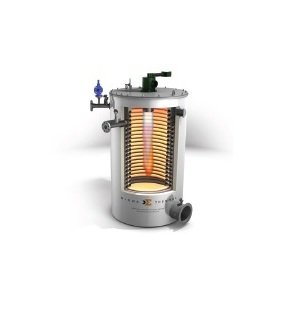

The HC-2 Thermal Fluid Heater from our Thermal Fluid Systems line offers unparalleled efficiency and reliability for industrial heating needs. With a double helical coil design that maximizes heat transfer, this heater boasts efficiencies exceeding 88%, reaching up to 93% with an optional economizer. Its minimal maintenance requirements, external insulation, and fuel source flexibility make it a cost-effective choice. The HC-2 is customizable to fit various process configurations and can meet all area classifications and endure harsh environments. Complete with advanced control systems for optimal safety and performance, this heater is designed to exceed expectations while meeting ASME Section VIII standards.
Product Specifications
Specifications Advanced Control Systems
Complete control systems are engineered to optimize system safety and performance. Sigma thermal can supply simple and cost effective standard panels, as well as full process automation and PLC based combustion control/BMS.
Specifications Capacities
Net Output Capacities are available from 500,000 to 75 MM Btu/hour
Specifications Classification
The HC-2 can be designed to meet all area classifications and to endure harsh environments.
Specifications Double Helical Coil Design
This design allows for three passes of flue gas along conservatively designed coil surface area.
Specifications Efficiencies
Base efficiencies can exceed 88% (LHV Basis) depending on process inlet temperatures, and with an optional economizer can exceed 93% (LHV basis).
Specifications Fuel Source And Burner Flexibility
Standard or engineered burner configurations are available for use with both traditional and alternative fuel sources. Low emissions burners can be supplied to meet all emission requirements (e.g., Low NOx, Best Available Control Technology).
Specifications Insulation
The heater shell is externally insulated with mineral wool insulation and covered with aluminum cladding.
Specifications Minimal Maintenance
Flue gasses are significantly cooled therefore eliminating the need for most internal shell insulation. This minimizes long term insulation maintenance and/or replacement.
Specifications Range Of Configurations
The HC-2 can be designed in various configurations to fit your process. Heater Configuration options include vertical up-fired, vertical down-fired, and horizontal.
