HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
SKU:LIQ-45a5b0
HCX Extreme Temperature LFMC - Flexible, Liquid-Tight, Zero-Halogen Jacket for Extreme Environments
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
$299.99
Quantity: 1
Claim Your Seller Account
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

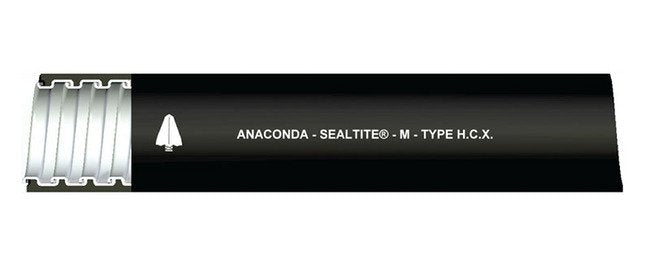

The HCX Extreme Temperature LFMC is a high-performance conduit designed for extreme temperature environments. With a zero-halogen, thermoplastic rubber jacket and a core of hot-dipped zinc galvanized steel, this conduit offers flexible, liquid-tight protection for wiring. It is IP 67 rated when used with approved connectors and is suitable for applications not requiring agency approvals. The conduit's color-coded outer jacket ensures easy identification, while its high-temperature rating (-76°F to +302°F) makes it ideal for demanding settings.
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
104 lbs | 47.17 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
65202 | 6806-24-00 | ATX-15 | EXTREME TEMP
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
50 ft | 15.24 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
