HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
SKU:LIQ-33e300
HCX Extreme Temperature LFMC - Flexible, liquid-tight conduit for extreme environments. Zero halogen jacket, IP 67 rated. Temperature range: -76°F to +302°F.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Claim Your Seller Account
HCX Extreme Temperature LFMC - Liquid-Tight Flexible Metal Conduit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

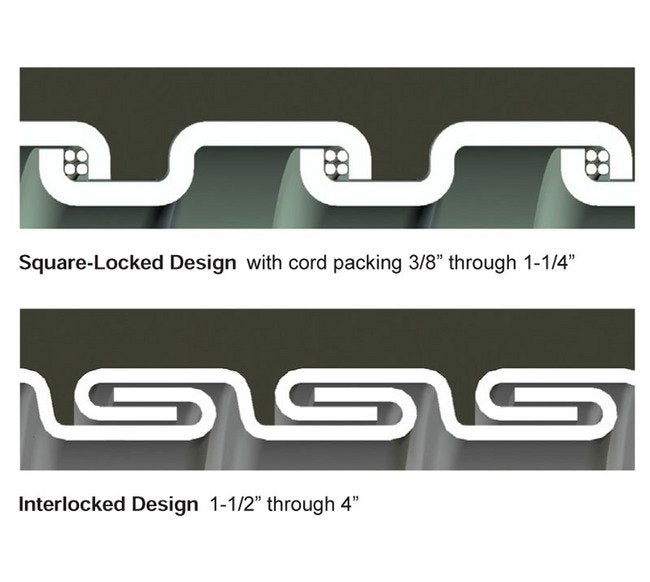

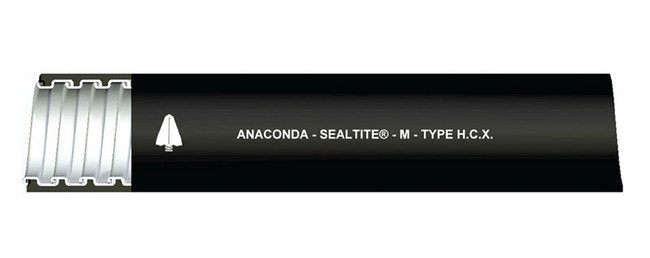

The HCX Extreme Temperature Liquid-Tight Flexible Metal Conduit is designed for extreme environments, featuring a zero halogen thermoplastic rubber jacket for maximum safety. This conduit offers a flexible, liquid-tight raceway for wiring with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight-resistant rubber outer jacket. With an IP 67 rating and a temperature range of -76°F to +302°F (-60°C to +150°C), it provides superior protection without the need for agency approvals. Ideal for applications requiring flexibility in harsh conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Flexibility is Required in Extreme Temperature EnvironmentsTemperature Range: -76°F to +302°F (-60°C to +150°C)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Delivers superior wiring protection where agency approvals are not required. Manufactured in a full range of trade sizes from 3/8" through 4". Smooth appearing jacket for exposed applications. Rated for temperature range of -76ºF to +302ºF (-60ºC to +150ºC). Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
39 lbs | 17.69 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
62202 | 6803-30-00 | ATX-12 | EXTREME TEMP
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.815 to 0.835 in | 20.701 to 21.209 mm
Specifications Jacket Benefits
Extreme Cold | High Heat | Liquid Tight | Zero Halogen
Specifications Jacket Material
Thermoplastic Elastomers (TPE)
Specifications Length
100 ft | 30.48 m
Specifications Note
Sizes above 2" available on special order
Specifications Outside Diameter
1.030 to 1.050 in | 26.162 to 26.670 mm
Specifications Packaging
Standard Carton
Specifications Type
HCX
