HD Ball Bearing Swivel - 5-1/4 in. Length
HD Ball Bearing Swivel - 5-1/4 in. Length
SKU:TOO-8bb910
Ensure safety and efficiency with the Lewis HD Ball Bearing Swivel - ideal for tension stringing in transmission and distribution lines.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
HD Ball Bearing Swivel - 5-1/4 in. Length
$79.99
Quantity: 1
Claim Your Seller Account
HD Ball Bearing Swivel - 5-1/4 in. Length
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

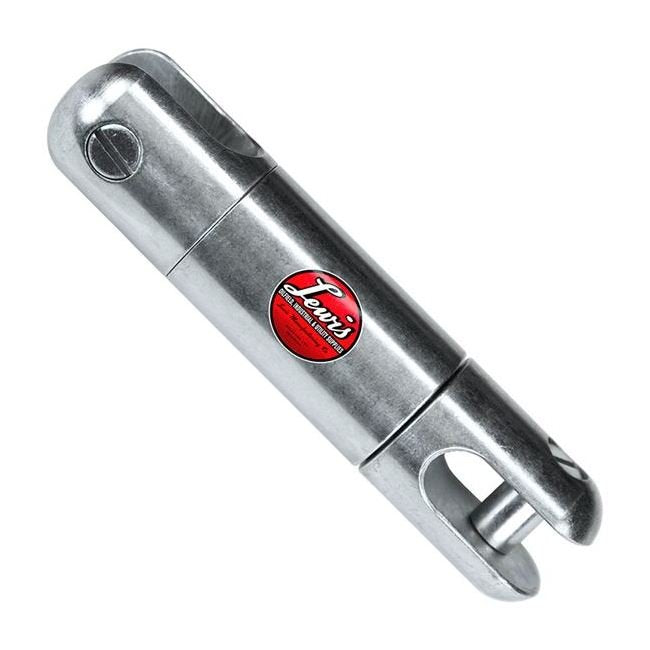

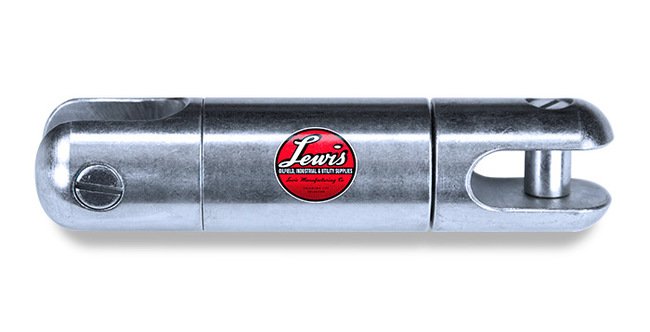

The Lewis HD Ball Bearing Swivel is a heavy-duty solution designed for tension stringing in transmission and distribution lines. With a work load of 5,400 lb and ultimate tensile strength of 16,200 lb, this swivel ensures the conductor remains in the neutral position during stringing. Crafted from high-grade steel, the swivel features thrust and radial bearings to absorb shock loads without affecting rotation. Make safety a priority with Lewis - inspect before and after each use, ensure proper load capacity, and benefit from superior side load capacity and long life.
Product Specifications
Dimensions Dia D
1.125 in
Dimensions Jaw C
1/2 in
Dimensions Length A
5-1/4 in
Dimensions Pin Dia B
7/16 in
Note
Lewis swivels can be ordered with screwdriver removable pins or allen wrench removable pins. Standard is screwdriver slotted pins. Lewis Swivels of size 5 and larger are built with Timken and Roller alignment bearings for superior side load capacity, and roller thrust for maximum pulling load & long life. Size 4 and smaller swivels use roller and roller type thrust bearings with ball or non-ball bearing alignment bearings.
Specifications Brand
Lewis
Specifications Material
Steel
Specifications Patent No
5,484,220
Specifications Performance
Heavy Duty
Specifications Type
Standard & Directional Boring HD Heavy Duty Swivels
Specifications Ultimate Tensile Strength Uts
16,200 lb
Specifications Work Load Wl
5,400 lb
Warning
Read The Following Before Using Lewis Ball Bearing SwivelsIt is essential to inspect all Lewis swivels before and after each use. If the swivel is loose and/or the bearings feel rough when rotated or are seized and cannot be rotated, the swivel should be removed from service immediately.Always select a swivel larger than the machine capacity. If a Lewis swivel is exposed to a load exceeding the posted work load it should be removed from service immediately, and a larger swivel should thereafter be used.It is important that you read and understand all breaking strength, safety & technical data relating to all Lewis Manufacturing Company products. Please order carefully. Do not exceed published working load on any Lewis swivel.Lubricate all greasable swivels before and after each use.
