HD6000 Heavy Duty Box - Cast Iron Construction
HD6000 Heavy Duty Box - Cast Iron Construction
SKU:HD6-e48cab
Heavy Duty Box for severe weathertight installations, made of cast iron with plated steel cap screws. Ideal for hazardous locations.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
HD6000 Heavy Duty Box - Cast Iron Construction
$899.99
Quantity: 1
Claim Your Seller Account
HD6000 Heavy Duty Box - Cast Iron Construction
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

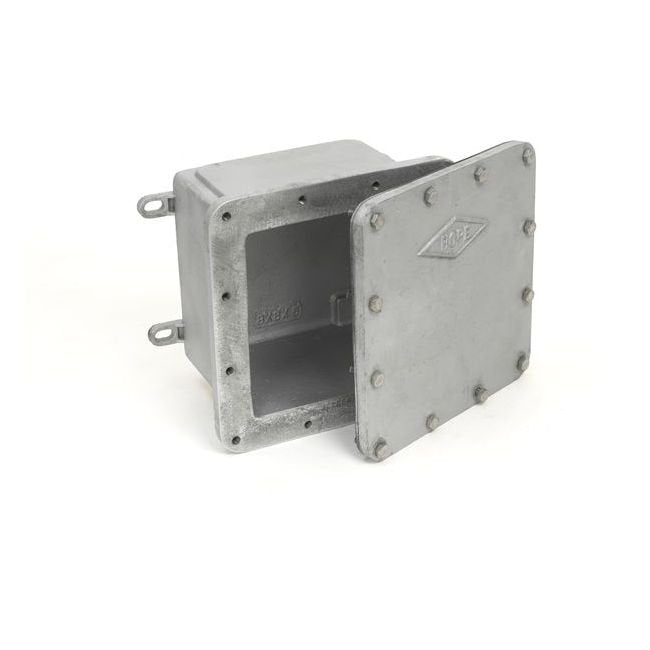

The HD6000 Heavy Duty Box is a robust solution for severe weathertight and watertight installations, ideal for submersion service in challenging environments like flooded manholes, docks, and substations. Constructed with heavy walled cast iron and wide flanges, this box remains watertight even under high heads of water. Featuring plated steel cap screws, neoprene type packing gasket, and four mounting lugs, it offers exceptional durability. Designed for hazardous locations, it meets Class II, Groups E, F, and G standards when equipped with specific gaskets and conduit entrances. Upgrade options include bosses for five threads, drilling and tapping, and special gasket materials.
Product Specifications
Specifications Approx Wall Thickness
5/8 in.
Specifications Approx Weight
380 lbs
Specifications Construction
cast iron

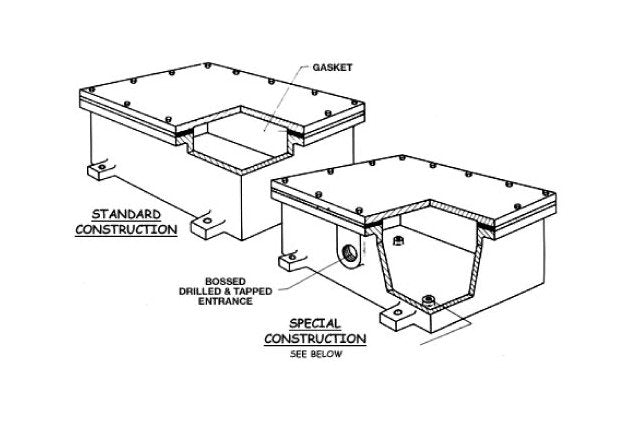

Specifications Holes Can Be Boss Drilled And Tapped
Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
12 in.
Specifications Inside Length
24 in.
Specifications Inside Width
18 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
HD6000
