HD6000 Type Heavy Duty Box - Cast Aluminum Surface Mounting
HD6000 Type Heavy Duty Box - Cast Aluminum Surface Mounting
SKU:HD6-2ccfce
Heavy Duty Box for severe weathertight installations, ideal for submerged environments like manholes and sub-stations. Cast aluminum construction with secure gasket seal and options for drilling, tapping, and special gaskets.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
HD6000 Type Heavy Duty Box - Cast Aluminum Surface Mounting
$189.99
Quantity: 1
Claim Your Seller Account
HD6000 Type Heavy Duty Box - Cast Aluminum Surface Mounting
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

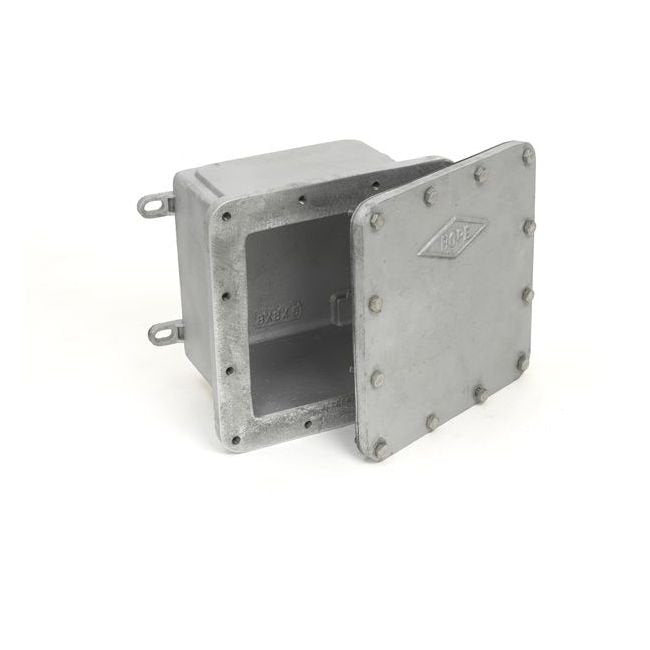

The HD6000 Type Heavy Duty Box is a rugged solution designed for the most severe weathertight and watertight installations. Constructed with heavy-walled cast aluminum and plated steel cap screws, this box is ideal for submerged environments such as manholes, docks, piers, and sub-stations. It features a neoprene type packing for a secure gasket seal and four mounting lugs for easy installation. With options for drilling and tapping, bosses for five threads, and special gaskets, this box ensures watertight conduit entry and reliable mounting of panels, relays, and transformers. Suitable for hazardous locations and available in cast aluminum upon request.
Product Specifications
Specifications Approx Wall Thickness
7/16 in.
Specifications Approx Weight
27.59 lbs
Specifications Construction
Cast Aluminum
Specifications Holes Can Be Boss Drilled And Tapped

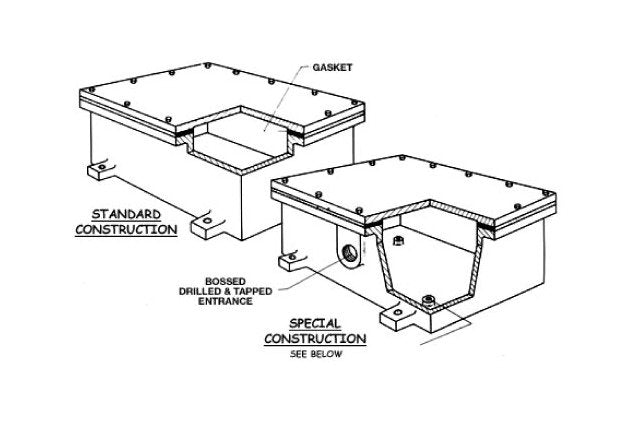

Holes can be boss, drilled and tapped by Hope Electrical Products at additional cost. Please mark up the hole locations on the attached drilling template and submit with your order to request for quote.
Specifications Inside Depth
8 in.
Specifications Inside Length
12 in.
Specifications Inside Width
8 in.
Specifications Mounting
Surface
Specifications Stock Note
If you donât see a box size listed that you need, please inquire - we may have it. This list does not represent all of our boxes.
Specifications Type
HD6000
