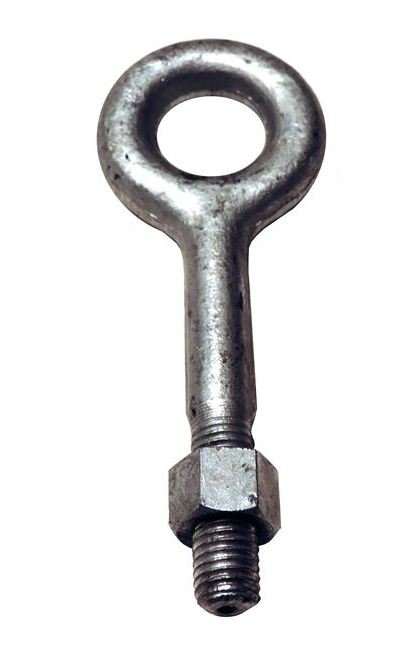

HDG Forged Steel Regular Nut Eye Bolt - 5/16 x 4-1/4

Name: HDG Forged Steel Regular Nut Eye Bolt - 5/16 x 4-1/4
Brand: Lexco Cable Manufacturing
SKU: WIR-870f11
Price: 79.99 USD
Availability: OutOfStock

SKU:WIR-870f11

Durable HDG forged steel eye bolt with 5/16 x 4-1/4 dimensions and 800 lbs WLL. Meets high procurement standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The HDG Forged Steel Regular Nut Eye Bolt is specifically designed for durability and safety. Made from hot dip galvanized forged steel, quenched and tempered, this bolt boasts an ultimate load of 5 times the working load limit. With precise dimensions and a weight of 25.00 lbs per 100 pieces, it guarantees reliable performance. Attach it to cable assemblies confidently, knowing it meets stringent procurement standards.

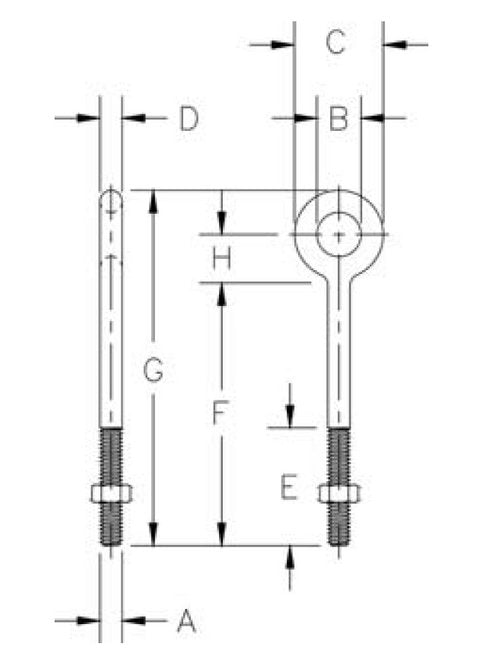

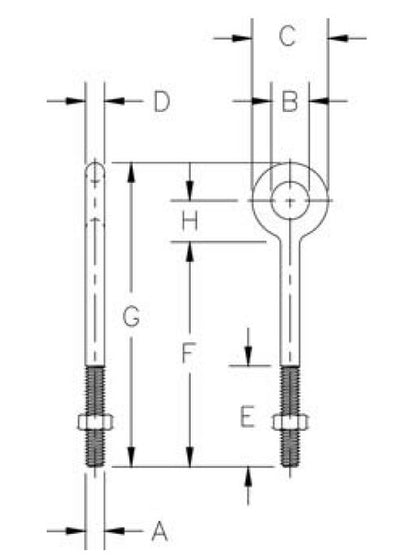

Product Specifications

Specifications A

0.31

Specifications B

0.62

Specifications C

1.25

Specifications D

0.31

Specifications E

2.50

Specifications F

4.25

Specifications G

5.56

Specifications H

0.69

Specifications Shank Dia Length In

5/16 x 4-1/4

Specifications Wll Lbs

800

Specifications Wt100 Pcs Lbs

25.00

CAGE

0T9L4

NAICS

332722

PSC

5306
