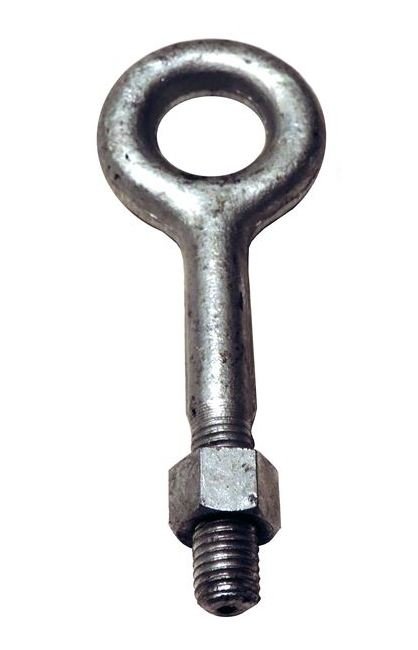

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

SKU:WIR-0520ea

Premium HDG Forged Steel Regular Nut Eye Bolt for secure cable assembly attachment. Ultimate load 5x WLL. Durable and reliable.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

$189.99

Quantity: 1

Claim Your Seller Account

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

HDG Forged Steel Regular Nut Eye Bolt - 5/8x24, WLL 3500lbs

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

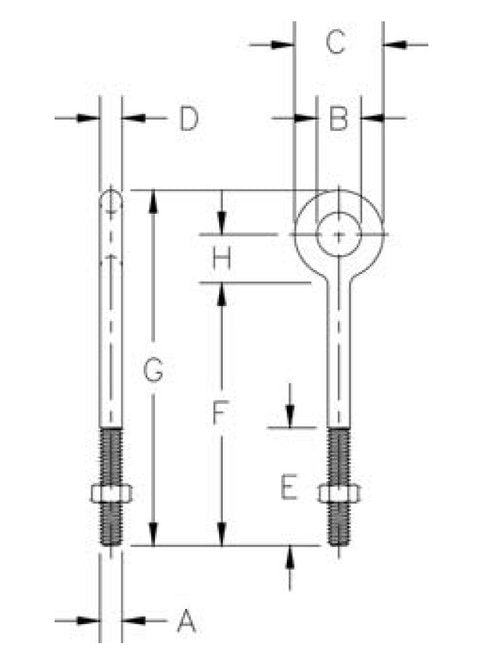

The HDG Forged Steel Regular Nut Eye Bolt is a premium wire rope hardware designed for heavy-duty applications. Made from hot dip galvanized forged steel that is quenched and tempered, this eye bolt ensures durability and reliability. With an ultimate load capacity of 5 times the working load limit, it provides superior strength and safety. The precise dimensions (A-H) guarantee compatibility and secure attachment to cable assemblies. Whether used at the eye end or threaded end, this bolt delivers exceptional performance under demanding conditions.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications A
0.62
Specifications B
1.25
Specifications C
2.50
Specifications D
0.62
Specifications E
6.00
Specifications F
24.00
Specifications G
26.69
Specifications H
1.44
Specifications Shank Dia Length In
5/8 x 24
Specifications Wll Lbs
3500
Specifications Wt100 Pcs Lbs
279.10
CAGE
0T9L4
NAICS
332722
PSC
5306
