HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

SKU:WIR-7c226d

Heavy-duty HDG Forged Steel Eye Bolt, high WLL of 5200 lbs, ensures reliable cable attachment

Regular price $349.99
Regular price Sale price $349.99
Sale

Initiate Order

HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

$349.99

Quantity: 1

Claim Your Seller Account

HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

HDG Forged Steel Regular Nut Eye Bolt - Import, WLL 5200 lbs

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

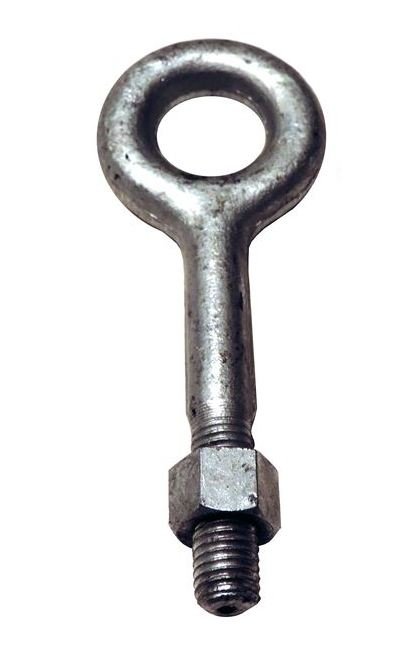

The HDG Forged Steel Regular Nut Eye Bolt is designed for heavy-duty wire rope applications, featuring hot dip galvanization for enhanced durability. Made from quenched and tempered forged steel, this eye bolt boasts an ultimate load capacity of 5 times the working load limit, providing exceptional strength and reliability in demanding environments. With precise dimensions and a weight of 168.60 lbs per 100 pieces, this bolt ensures secure attachment to cable assemblies. Trust in this high-quality import product for superior performance and longevity.

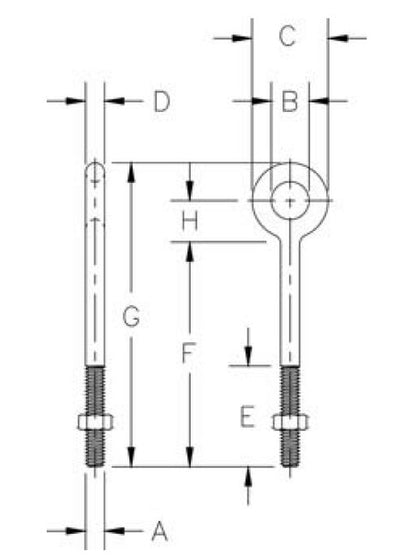

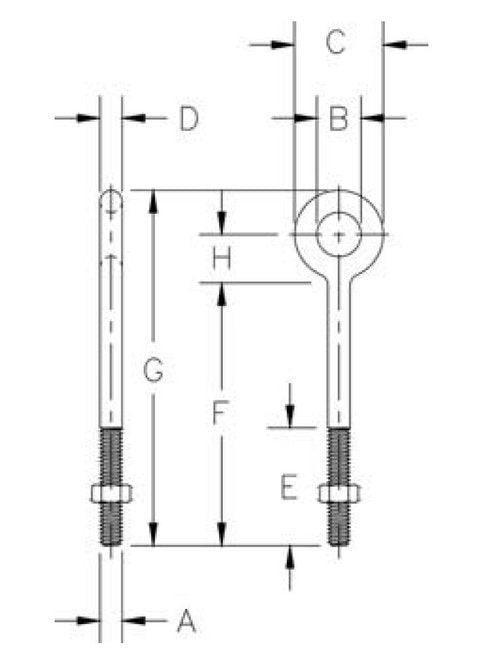

Product Specifications

Specifications A
0.75
Specifications B
1.50
Specifications C
3.00
Specifications D
0.75
Specifications E
2.00
Specifications F
4.50
Specifications G
7.69
Specifications H
1.69
Specifications Shank Dia Length In
3/4 x 4-1/2
Specifications Wll Lbs
5200
Specifications Wt100 Pcs Lbs
168.60
CAGE
0T9L4
NAICS
332722
PSC
5306
