HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

SKU:WIR-7a19cc

Forge-strong HDG Regular Nut Eye Bolt - Quenched & Tempered for Superior Durability - 5/8'' x 15'' - 3500 lbs WLL

Regular price $279.99
Regular price Sale price $279.99
Sale

Initiate Order

HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

$279.99

Quantity: 1

Claim Your Seller Account

HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

HDG Regular Nut Eye Bolt - 5/8'' x 15'' - 3500 lbs WLL

$279.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

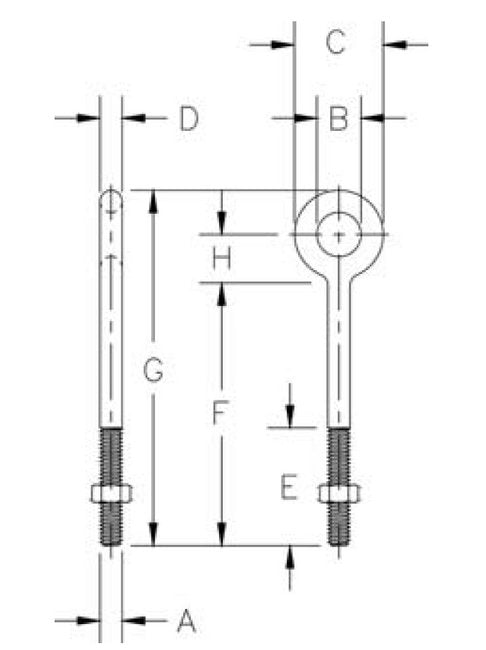

The HDG Regular Nut Eye Bolt is meticulously crafted from hot dip galvanized forged steel, quenched and tempered to ensure durability. With an ultimate load that is 5 times the working load limit, this eye bolt provides exceptional strength for cable assemblies. Its precise dimensions A-H (0.62''-1.44'') and 5/8'' x 15'' shank size make it ideal for a variety of applications, meeting the highest quality standards. Attach with confidence, secure with superiority.

Product Specifications

Specifications A
0.62
Specifications B
1.25
Specifications C
2.50
Specifications D
0.62
Specifications E
5.00
Specifications F
15.00
Specifications G
17.69
Specifications H
1.44
Specifications Shank Dia Length In
5/8 x 15
Specifications Wll Lbs
3500
Specifications Wt100 Pcs Lbs
201.16
CAGE
0T9L4
NAICS
332722
PSC
5306
