HDG Regular Nut Eye Bolt - Forged Steel - 7/8'' x 5''
HDG Regular Nut Eye Bolt - Forged Steel - 7/8'' x 5''
SKU:WIR-4a9cee
High-strength HDG Regular Nut Eye Bolt for wire rope assemblies, quenched and tempered for reliability. Ultimate load 5x WLL.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
HDG Regular Nut Eye Bolt - Forged Steel - 7/8'' x 5''
$189.99
Quantity: 1
Claim Your Seller Account
HDG Regular Nut Eye Bolt - Forged Steel - 7/8'' x 5''
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

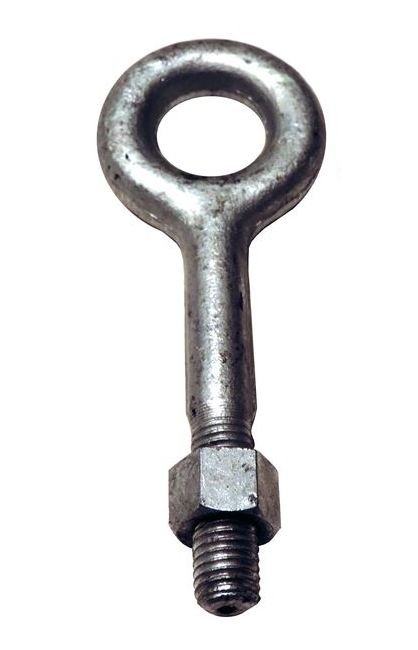

The HDG Regular Nut Eye Bolt is forged from hot dip galvanized steel, offering superior strength and durability. Designed for use in wire rope assemblies, this bolt has been quenched and tempered, ensuring reliable performance under heavy loads. With an ultimate load capacity of 5 times the working load limit and precise dimensions meeting industry standards, this bolt is a dependable choice for both consumer and institutional applications.

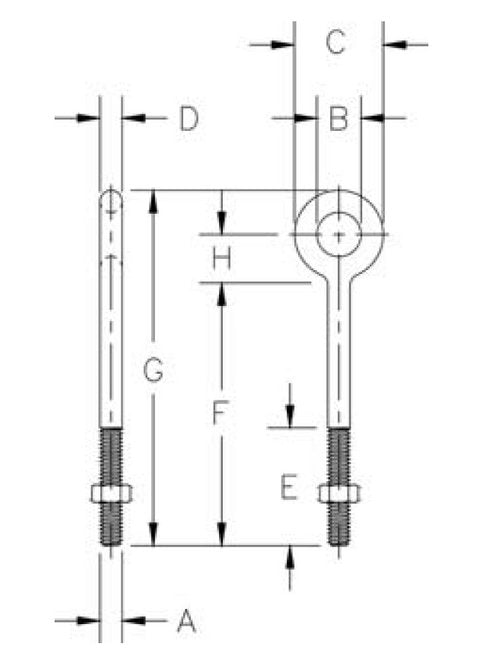

Product Specifications
Specifications A
0.88
Specifications B
1.75
Specifications C
3.50
Specifications D
0.88
Specifications E
2.50
Specifications F
5.00
Specifications G
8.75
Specifications H
2.00
Specifications Shank Dia Length In
7/8 x 5
Specifications Wll Lbs
7200
Specifications Wt100 Pcs Lbs
270.00
CAGE
0T9L4
NAICS
332722
PSC
5306
