HDG Shoulder Nut Eye Bolts - 1-1/4" x 12"
HDG Shoulder Nut Eye Bolts - 1-1/4" x 12"
SKU:WIR-274734
Durable HDG Shoulder Nut Eye Bolts for secure fastening in wire rope applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

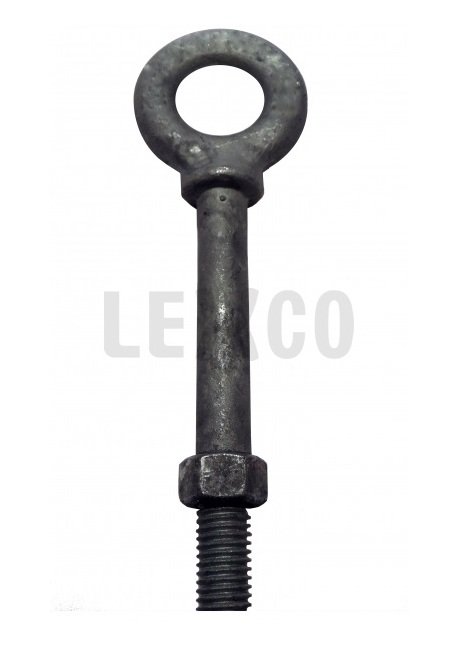

The HDG Shoulder Nut Eye Bolts are crafted from hot dip galvanized forged steel, ensuring durability and strength for your wire rope applications. With a quenched and tempered construction, these bolts offer a high ultimate load that is 5 times the working load limit. Featuring precise dimensions and a versatile design, these eye bolts can be easily attached to cable assemblies either through the eye end or threaded end. Trust these bolts for secure and reliable fastening solutions in industrial and institutional settings.

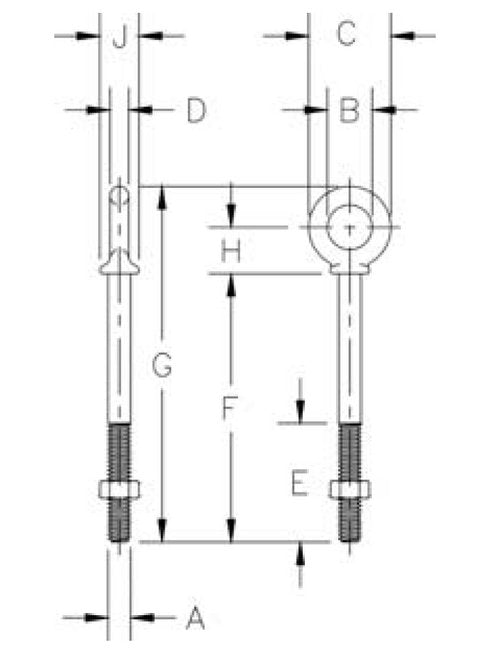

Product Specifications
Specifications A
1.25
Specifications B
2.50
Specifications C
4.50
Specifications D
1.00
Specifications E
4.00
Specifications F
12.00
Specifications G
16.72
Specifications H
2.47
Specifications J
2.28
Specifications Shank Dia Length In
1-1/4 x 12
Specifications Wll Lbs
15200
Specifications Wt100 Pcs Lbs
795
CAGE
0T9L4
NAICS
332722
PSC
5306
