HDG Shoulder Nut Eye Bolts - Import, 3/4 x 4-1/2

Name: HDG Shoulder Nut Eye Bolts - Import, 3/4 x 4-1/2
Brand: Lexco Cable Manufacturing
SKU: WIR-d00c5c
Price: 189.99 USD
Availability: OutOfStock

SKU:WIR-d00c5c

High-quality HDG Shoulder Nut Eye Bolts - Import for secure cable assembly connections. Ultimate load 5200 lbs.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

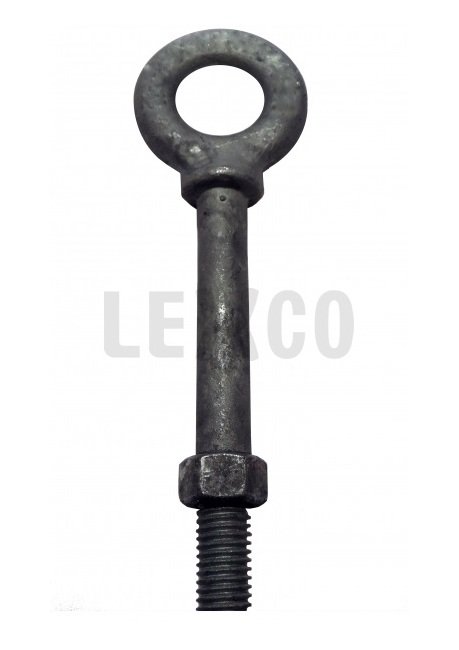

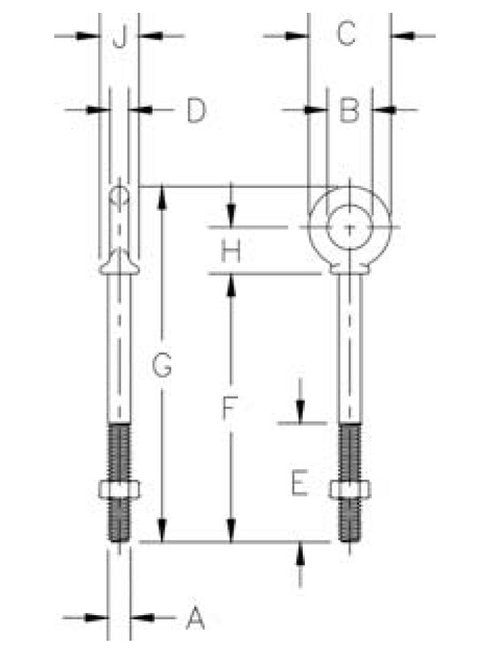

The HDG Shoulder Nut Eye Bolts are hot dip galvanized forged steel with quenched and tempered construction, ensuring durability and reliability for heavy-duty applications. With an ultimate load 5 times the working load limit of 5200 lbs, they provide a secure connection for cable assemblies. Designed with precise dimensions A-J, these eye bolts are versatile for various installation needs in wire rope systems.

Product Specifications

Specifications A

0.75

Specifications B

1.50

Specifications C

2.75

Specifications D

0.62

Specifications E

2.00

Specifications F

4.50

Specifications G

7.44

Specifications H

1.56

Specifications J

1.38

Specifications Shank Dia Length In

3/4 x 4-1/2

Specifications Wll Lbs

5200

Specifications Wt100 Pcs Lbs

144.50

CAGE

0T9L4

NAICS

332722

PSC

5306

HDG Shoulder Nut Eye Bolts - Import, 3/4 x 4-1/2
