The HDLS Heavy Duty Linear Motion Slide offers exceptional strength and precision, with a maximum carriage load capacity of 3100 Newtons over 10000 kilometers. Featuring narrow and wide unit options, the narrow unit provides heightened stiffness while the wide unit excels at handling moment loads. Both units come equipped with left, right, and dual output shafts, along with optional shock absorbers and rubber buffers for enhanced performance and durability. With speeds exceeding 6m/s and the ability to create X-Y and X-Y-Z systems, the HDLS slide ensures reliable and versatile motion control for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

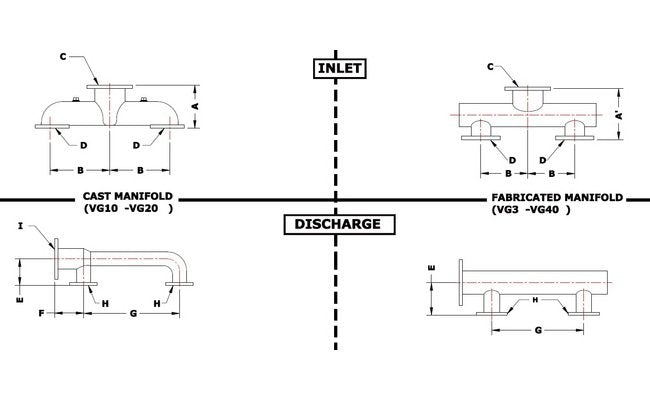

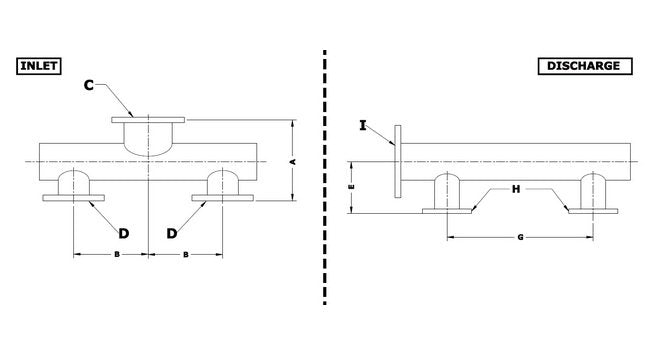

Dimension Discharge Flange Size H
3 x 7-1/2 in
Dimension Discharge Flange Size I
4 x 9 in | 100 x 220 mm
Dimension Discharge Size E
5-1/4 in | 133 mm
Dimension Discharge Size F
5-3/4 in | 146 mm
Dimension Discharge Size G
21-1/4 in
Dimension Inlet Flange Size C
6 x 11 in | 150 x 285 mm
Dimension Inlet Flange Size D
4 x 9 in
Dimension Inlet Size A
11 in
Dimension Inlet Size B
10-5/8 in | 270 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
316 Cast Stainless Steel
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Note For Head Material
Replaceable 316 SS Wear Plates on cast iron heads.
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
410 Heat Treated (HT) Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
900 lb | 410 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21311EAE4
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Medium (M)
Specifications Manifold Inlet Flange Connection Size
6 in | 150 mm
Specifications Manifold Outlet Flange Connection Size
4 in | 100 mm
Specifications Nominal Sealing Liquid Flow Rate At 20 To 24 Inch
75 L/min | 20 g/min
Specifications Pump Inlet Flange Connection Size
4 in | 100 mm
Specifications Pump Outlet Flange Connection Size
3 in | 80 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
2 in | 50.8 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
