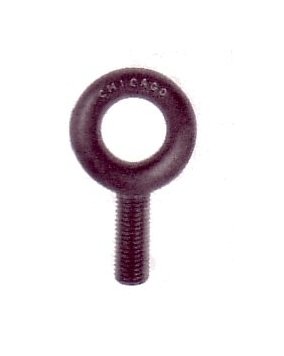

Heat Treated Drop-Forged Eye Bolts - Style 566 Standard Plain Pattern

Name: Heat Treated Drop-Forged Eye Bolts - Style 566 Standard Plain Pattern
Brand: Orr & Orr, Inc.
SKU: TRU-00c7d5
Price: 4.25 USD
Availability: OutOfStock

SKU:TRU-00c7d5

Enhance lifting operations with Heat Treated Drop-Forged Eye Bolts - Style 566 Standard Plain Pattern, ensuring maximum durability and safety.

$4.25

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your lifting and rigging operations with our Heat Treated Drop-Forged Eye Bolts. Crafted to Style 566 Standard Plain Pattern, these bolts offer unmatched durability with a Mini Break Load of 5000 lb. With a Safe Working Load up to 1400 lb in various directions, these bolts feature a Stocked Thread of 3/8-16, ensuring secure fastening. Measuring 2 1/16 inches in length, these eye bolts are designed to withstand heavy-duty use.

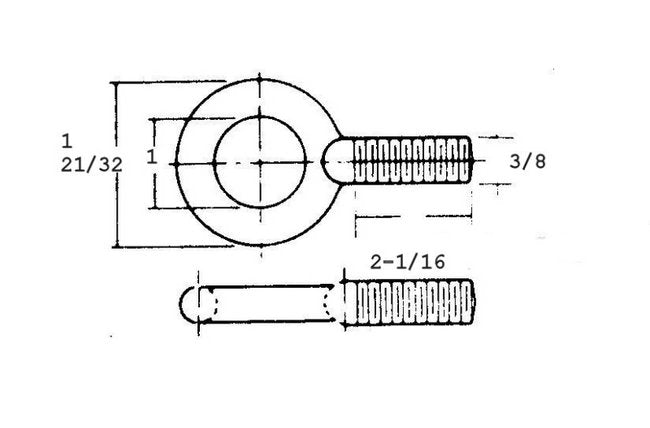

Product Specifications

Specifications A

3/8 Inch

Specifications B

2 1/16 Inch

Specifications C

1 Inch

Specifications D

1 21/32 Inch

Specifications List Price

4.25 USD

Specifications Mini Break Load

5000 lb

Specifications Mini Proof Load

2100 lb

Specifications Min Eff Length

7/8 Inch

Specifications No

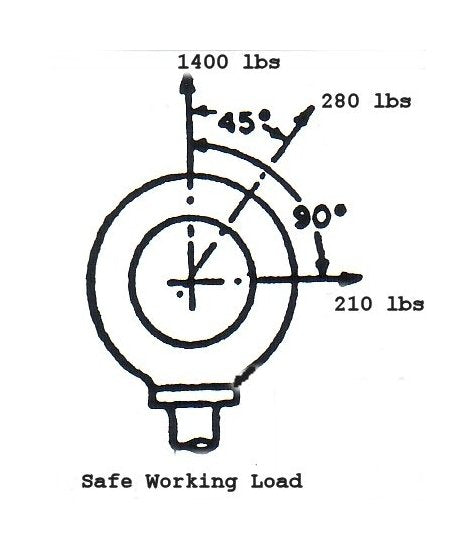

Specifications Safe Working Load Wx

1400

Specifications Safe Working Load Wy

280

Specifications Safe Working Load Wz

210

Specifications Stocked Thread

Blk Inch

Specifications Thread

3/8-16

Specifications Type

Style 566 Standard Plain Pattern

Specifications Weight

15 lb/C
