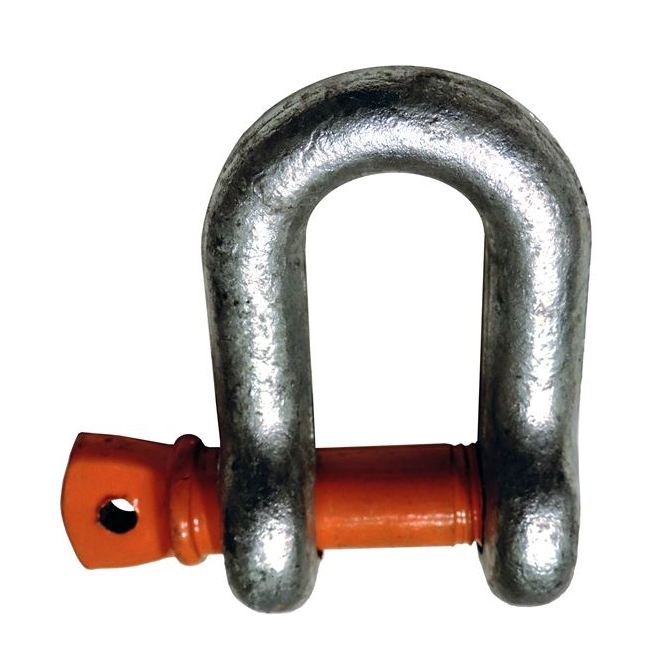

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

SKU:WIR-9c4df5

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized, Federal Spec RR-C-271D Type IVB Grade A Class 2, 9 1/2T WLL, 6x Ultimate Load

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

$49.99

Quantity: 1

Claim Your Seller Account

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

Heavy Duty 1 1/8" Chain Shackles - Hot Dip Galvanized

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet the demands of heavy lifting with our Heavy Duty 1 1/8" Chain Shackles. These shackles are built to Federal Specification RR-C-271D, Type IVB, Grade A, Class 2 standards ensuring exceptional strength and safety. With an impressive 9 1/2-ton working load limit and a 6 times ultimate load capacity, they provide reliable performance in lifting and towing operations. The quenched, tempered, and alloy pin design, along with a proof load of 2.2 times working load limit, guarantees durability and security. Ideal for institutional use that requires top-grade wire rope hardware.

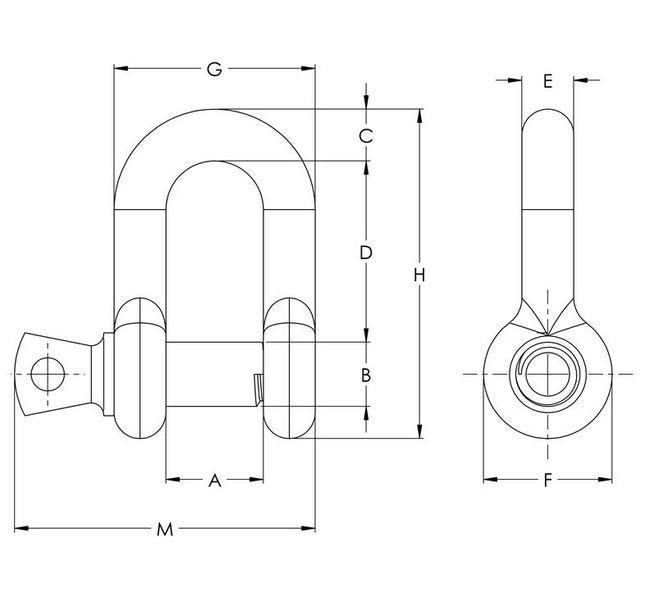

Product Specifications

Specifications A In
1.81
Specifications B In
1.25
Specifications C In
1.25
Specifications D In
3.58
Specifications E In
1.13
Specifications F In
2.69
Specifications G In
4.06
Specifications H In
6.78
Specifications M In
5.59
Specifications Nominal Size In
1 1/8
Specifications Weight Lbs
6.75
Specifications Wll Tons
9 1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
