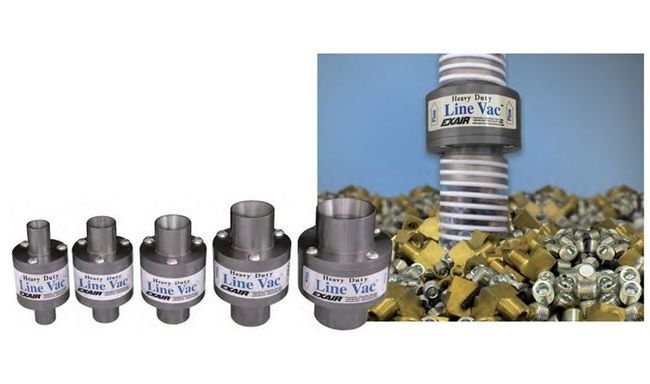

Heavy Duty 1 Inch Inlet Diameter Line Vac Conveyor
Heavy Duty 1 Inch Inlet Diameter Line Vac Conveyor
SKU:HEA-a29c06
Powerful Heavy Duty Line Vac Conveyor for efficient material conveying over long distances. Ideal for industrial use.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy Duty 1 Inch Inlet Diameter Line Vac Conveyor
$499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 1 Inch Inlet Diameter Line Vac Conveyor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty 1 Inch Inlet Diameter Line Vac Conveyor from EXAIR offers unrivaled power and durability, making it ideal for industrial applications. Constructed from heavy-duty hardened alloy, it operates at a pressure of 80 psig with a vacuum pressure of -105 inWc, ensuring efficient material conveying over extended distances. With a compact design, corrosion-resistant body, and versatile applications ranging from chip removal to waste disposal, this conveyor enhances operational productivity while maintaining longevity and reliability. Perfect for government and institutional procurement needs where high-performance equipment is crucial.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
35 SCFM | 991 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F
1 in | 25 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.65 in | 17 mm
Specifications Dimension J
1.30 in | 33 mm
Specifications Dimension K
0.26 in | 7 mm
Specifications Dimension L
1.32 in | 34 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.56 in | 40 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Hose Size
1 in | 25 mm
Specifications Inlet Size
1 in | 25 mm
Specifications Inside Diameter
0.75 in | 19 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Diameter
1 in | 25 mm
Specifications Outside Diameter
2.13 in | 54 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-105 inWc | -26 kPa
