Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor
Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor
SKU:HEA-eb3486
Durable Heavy-Duty 1 NPT Inlet Threaded Line Vac Conveyor for efficient material conveying. High-performance with compact design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor
$289.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

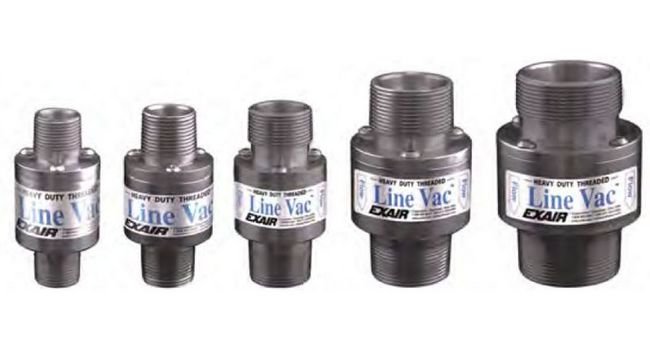

The Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor by EXAIR offers a robust solution for conveying parts, scrap, and bulk materials. Made of Heavy-Duty Hardened Alloy, this conveyor ensures durability with a pressure rating of 80 psig. With an air consumption of 35 SCFM and vacuum pressure of -105 inWc, it provides high throughput capability. Its compact design fits standard hoses, tubes, and pipes, making it versatile for various applications like chip removal, material conveying, and waste/trim removal. Suitable for government and institutional use, the Heavy Duty 1 NPT Inlet Threaded Line Vac Conveyor is a reliable choice for your conveying needs.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
35 SCFM | 991 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.06 in | 52 mm
Specifications Dimension F1
1.19 in | 30 mm
Specifications Dimension F2
1.19 in | 30 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.65 in | 17 mm
Specifications Dimension J
1.30 in | 33 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.32 in | 34 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.56 in | 40 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Inlet Thread Size
1 NPT
Specifications Inside Diameter
0.75 in | 19 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Thread Size
1 NPT
Specifications Outside Diameter
2.13 in | 54 mm
Specifications Overall Length
4.25 in | 108 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pipe Size
1 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-105 inWc | -26 kPa
