Heavy Duty 10-Way Pulling Harness Set
Heavy Duty 10-Way Pulling Harness Set
SKU:PUL-343649
Heavy Duty 10-Way Pulling Harness Set - Robust, reliable, and efficient solution for heavy-duty cable pulling tasks.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty 10-Way Pulling Harness Set
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 10-Way Pulling Harness Set
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

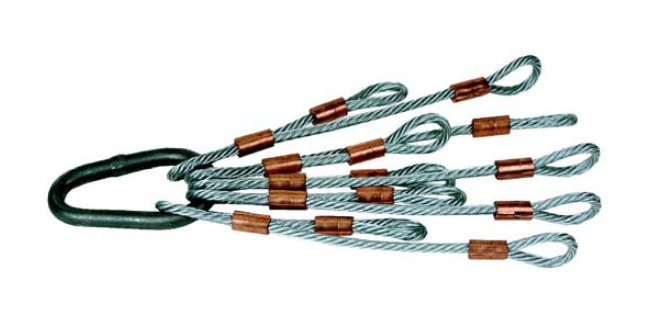

The Heavy Duty 10-Way Pulling Harness Set is a robust solution for efficient and secure cable pulling tasks. Each leg of this harness boasts a working load of 4800 lb (21351 N), with a combined working load of 6000 lb (26689 N). The design features a max width of 4.50 inches (114 mm) and a 6-inch (152 mm) separation between legs, ensuring stability during use. The lead ring has a diameter of 0.75 inches (19 mm), and the legs come in a sturdy 0.38-inch (10 mm) diameter. Ideal for heavy-duty applications, this harness offers exceptional strength and durability for reliable performance. Whether in construction, telecommunications, or industrial settings, this harness is engineered to meet the demanding needs of professionals seeking top-tier pulling equipment.
Product Specifications
Specifications Lead Ring Diameter C In
0.75
Specifications Lead Ring Diameter C Mm
19
Specifications Leg Diameter D In
0.38
Specifications Leg Diameter D Mm
10
Specifications Max Width A In
4.50
Specifications Max Width A Mm
114
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
6
Specifications Separation Between Legs B Mm
152
Specifications Working Load Combined Lb
6000
Specifications Working Load Combined N
26689
Specifications Working Load Per Leg Lb
4800
Specifications Working Load Per Leg N
21351
