Heavy-Duty 10000 lbs. Base Plate Mounted Jib Crane
Heavy-Duty 10000 lbs. Base Plate Mounted Jib Crane
SKU:REL-2fd65a
Heavy-duty 10000 lbs. crane for robust lifting operations. Flexible mounting options. Ideal for extreme conditions. Electrification perks for efficient power management. Additional features available.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy-Duty 10000 lbs. Base Plate Mounted Jib Crane
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 10000 lbs. Base Plate Mounted Jib Crane
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

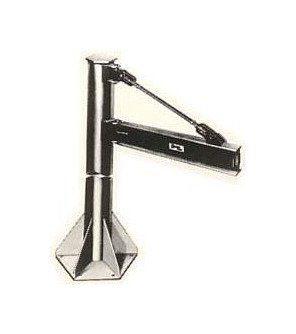

The Model 600 BPM Base Plate Mounted Jib Crane is a robust solution for heavy-duty lifting operations, boasting a capacity of 10000 lbs. With a durable construction, this crane features a span of 18 feet, a max height of 20 feet 2 inches, and a sturdy base plate size of 70 inches. Its versatile mounting options cater to different installation needs, ensuring reliability in extreme conditions and high-cycle usage. Electrification enhancements like Bottom Entry Collector Rings and Control Conductors provide efficient power management, while optional extras like Anchor Bolts and Template offer added convenience during setup.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

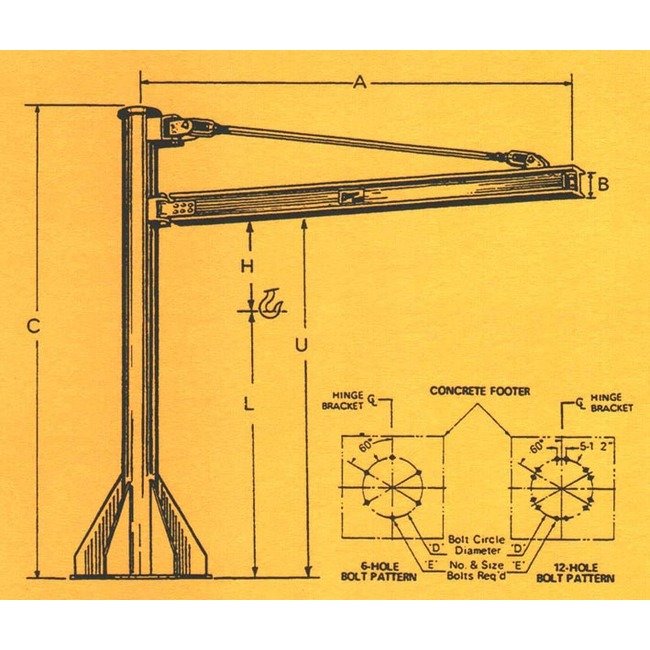

Specifications Base Plate Size
70 inches
Specifications Bolt Circle Diameter D
60 inches
Specifications Bolt Diameter E
1 1/4 inches
Specifications Boom Size B
15 inches
Specifications Capacity
10000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
20'-2"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
18'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
5290 lbs.
