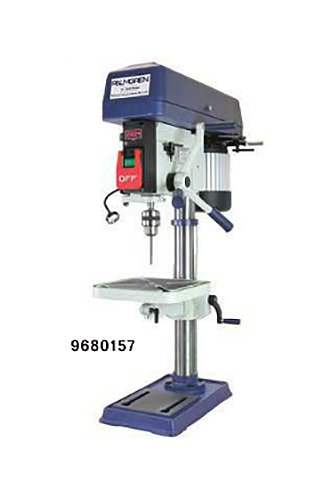

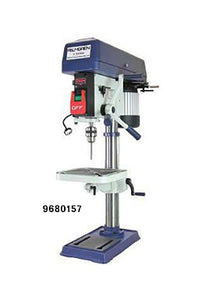

Heavy-Duty 16-Speed Drill Press with Step Pulley by Palmgren
Heavy-Duty 16-Speed Drill Press with Step Pulley by Palmgren
SKU:DRI-f64dbf
Experience precision and durability with the Palmgren Heavy-Duty 16-Speed Drill Press for metalworking applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy-Duty 16-Speed Drill Press with Step Pulley by Palmgren
$899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 16-Speed Drill Press with Step Pulley by Palmgren
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Palmgren Heavy-Duty 16-Speed Drill Press with Step Pulley is a robust solution designed to meet the demanding needs of metalworking applications. With a range of spindle speeds from 138 to 3476 rpm, this drill press offers exceptional precision and performance. The fully enclosed spindle with spaced bearings ensures maximum support and accuracy, while the extended quill/spindle travel is ideal for deep hole applications. Equipped with a quick-change vertical depth stop, LED readout for spindle speeds, and a rack and pinion table raiser, this drill press provides versatility and reliability. Meeting strict institutional procurement standards, this drill press guarantees durability and efficiency for a wide range of industrial settings.
Product Specifications
Features Features

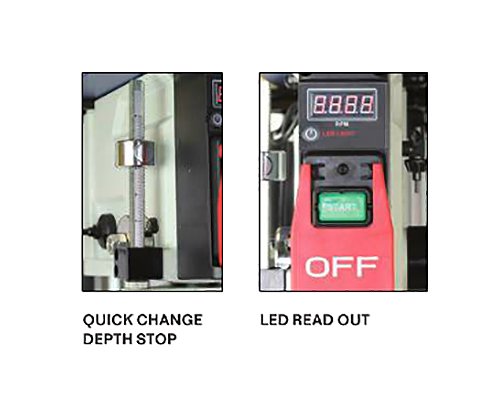

Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operationsMaximum spindle run out of 0.0005â Extended quill/spindle travel ideal for deep hole applications Quick change vertical depth stop for accurate, repeatable feed lengthIncludes chuck with key and arborLED readout for spindle speedsRack and pinion table raiser Table tilts 45 degrees right and left, and rotates 360 degrees around the column Front mounted industrial paddle-type power switch
Technical Specs Alternating Current Ac Voltage
3.7 V | 7.3 V
Technical Specs Brands
Palmgren
Technical Specs Capacity Cast Iron
5/8 in
Technical Specs Depth
27 in
Technical Specs Height
43 in
Technical Specs Motor Horse Power Hp
1/2 hp
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
138 to 3476 rpm
Technical Specs Spindle Speeds
16 rpm
Technical Specs Spindle Table
11 in
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
5 in
Technical Specs Swing
15 in
Technical Specs Table Slots
5/8 in
Technical Specs Table Work Surface
11-1/2 x 11-1/2 in
Technical Specs Voltage
120 V | 240 V
Technical Specs Width
13-1/2 in
