Heavy-Duty 16 Speed Step Pulley Drill Press by Palmgren
Heavy-Duty 16 Speed Step Pulley Drill Press by Palmgren
SKU:DRI-93af04
Powerful palmgren Heavy-Duty Drill Press for precise metalworking tasks
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty 16 Speed Step Pulley Drill Press by Palmgren
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 16 Speed Step Pulley Drill Press by Palmgren
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

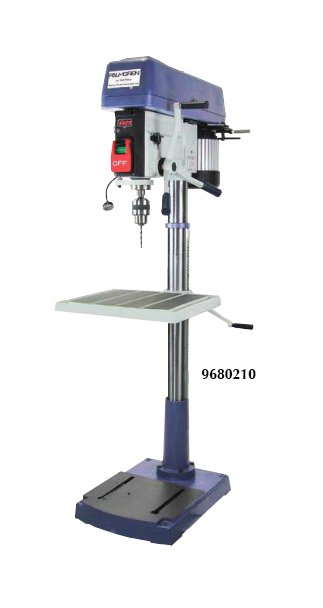

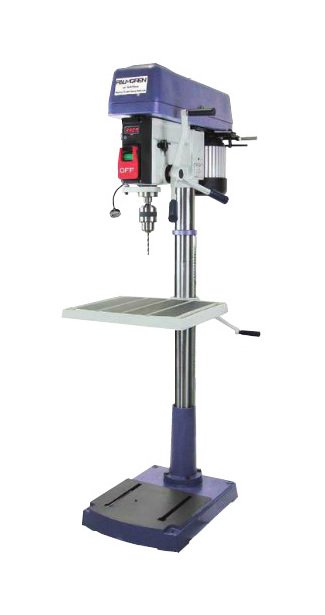

The Palmgren Heavy-Duty 16 Spindle Speed Drill Press with Step Pulley is a robust solution designed for precision drilling operations. With a spindle speed range of 120 to 3605 rpm and a 1-1/2 HP motor, this drill press offers outstanding performance for metalworking tasks. The fully enclosed spindle with spaced bearings ensures maximum support and accuracy during drilling, while the LED readout for spindle speeds enhances operational efficiency. Compliance with industry standards makes this drill press a reliable choice for institutional buyers seeking durability and precision in their equipment.
Product Specifications
Features Features

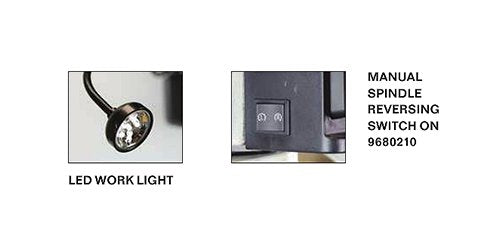

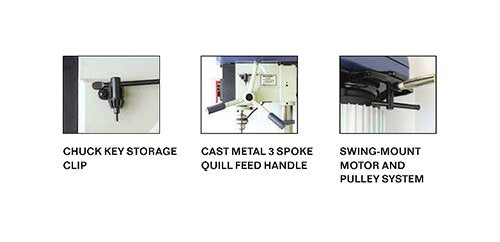

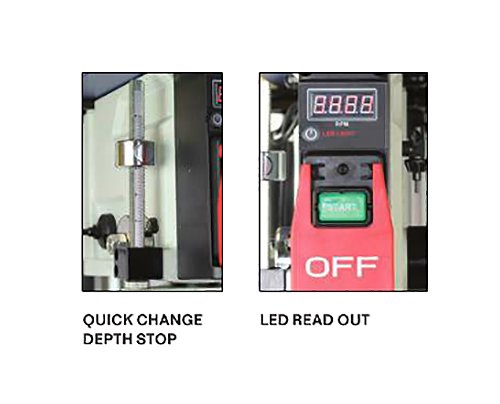

Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operationsMaximum spindle run out of 0.0005â Extended quill/spindle travel ideal for deep hole applications Quick change vertical depth stop for accurate, repeatable feed lengthIncludes chuck with key and arborLED readout for spindle speedsRack and pinion table raiser Table tilts 45 degrees right and left, and rotates 360 degrees around the column Front mounted industrial paddle-type power switch
Technical Specs Alternating Current Ac Voltage
5 V
Technical Specs Brands
Palmgren
Technical Specs Capacity Cast Iron
9/16 in
Technical Specs Depth
30 in
Technical Specs Height
70 in
Technical Specs Motor Horse Power Hp
1-1/2 hp
Technical Specs Number Of Phase
3
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
120 to 3605 rpm
Technical Specs Spindle Speeds
16 rpm
Technical Specs Spindle Table
16-3/8 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
5 in
Technical Specs Swing
20 in
Technical Specs Table Slots
5/8 in
Technical Specs Table Work Surface
19-1/4 x 18-3/4 in
Technical Specs Voltage
240 V
Technical Specs Width
16 in
