Our heavy-duty 17-24" stock boxes are constructed from durable 200#/ECT-32-C flute kraft corrugated material, ensuring strength and protection for your shipments. These boxes ship and store flat, optimizing space efficiency. With 100% recyclable corrugated cartons, you can make sustainable choices without compromising on quality. The specified dimensions of 24 x 12 x 8 inches provide ample room for various items, making them versatile for both storage and transportation needs.
Product Specifications
Additional Information 0
Leading edge technology and more than 100 years of experienceâ¦nano-purification solutions, your world-class provider of state-of-the-art compressed air and gas solutions to industry.Our commitment at n-psi is to work alongside our customers and provide unique solutions with the highest quality products to solve your specific challenges.A wealth of experience and leading edge products are only part of the equation. n-psi realize that world-class customer service is the most important component to any successful business.Experience. Customer. Serviceâ¦n-psiDesigned for use at the point of application, nano dryers are an effective solution to the problems of contaminated compressed air.Reliability is built inâ¦and backed by our 5 year product warranty!
Benefits Get More For Your Money Easy To Install
Easy to install and ready for use - package includes every-thing you need for either floor or wall mounting, and 3 power cables for operation virtually anywhere in the world (100 to 250 VAC, 50 or 60 Hz)
Benefits Get More For Your Money Easy To Maintain
Patented, combined filter and desiccant cartridgesTwo service kits cover all your maintenance needsBuilt in inlet and outlet filtersNo special tools requiredNo handling of loose desiccantNo handling of contaminantsReplace cartridges is less than 15 minutes
Benefits Get More For Your Money Energy Saving Design
Integrated inlet and outlet filtration eliminates the need for external filter housings (An upstream coalescing filter may be required in some applications.)Advanced design limits regeneration purge air usage to approximately 15%Energy saving dewpoint monitoring option can save up to 60% during reduced inlet moisture loading
Benefits Get More For Your Money Guaranteed Performance
The nano D-Series1 dryers have been 100% function and performance tested at the factory to ensure the highest standard of performance, delivering compressed air purity in accordance with ISO8573:1 â 2001, Class 2 dirt (1 micron) and Class 2 water (-40 ºC pressure dewpoint).
Benefits Get More For Your Money High Quality Construction
100% tested for leaks, proper operation and dewpoint performance
Benefits Get More For Your Money Plc Controls And Digital Displa

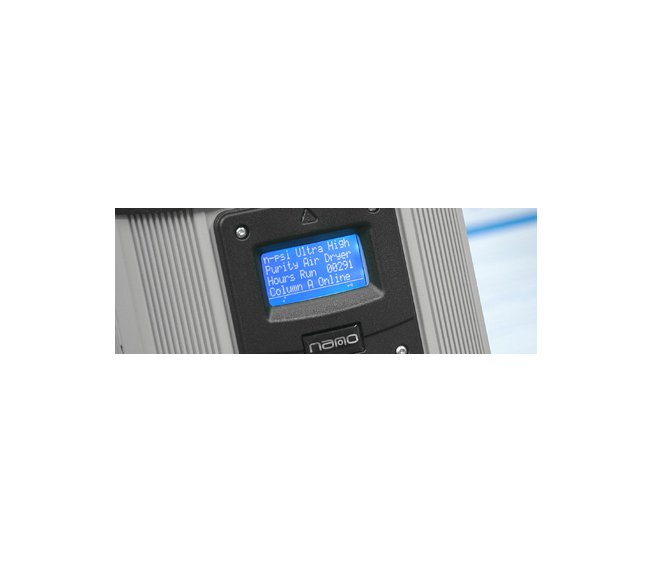

A clear digital display provides a full view of PLC operation and monitoring data
Benefits Get More For Your Money Quiet Depressurization
Unique exhaust air silencers significantly reduce noise levels
Benefits Get More For Your Money Reliable Operation
High efficiency moisture removal and reliable operation with PLC controlled solenoid valvesIntegral volumetric flow limiter prevents overflow ensuring consistent dewpoint performanceCondensate is automatically removed every cycle to eliminate possible carry over
Benefits Get More For Your Money Warranty
Peace of mind - a 5 year warranty comes standard with every D-Series1 dryer
Clean And Dry 0
Clean and dry compressed air is essential in every efficient and profitable manufacturing and process operation worldwide. nano-purification solutions' vast experience includes food, beverage, chemical, laboratory, medical and natural gas applications.n-psi understands your needs and has created the nano range of high-performance, energy-saving compressed air and gas purification products to provide clean and dry compressed air and gases at an affordable price with unrivaled reliability.
Design 0
Our experienced team of design engineers are world leading specialists in the design of new and unique industrial compressed air treatment products and compressed air dryers.
D Series1 Nano Dryers In Detail Constant Flow And Pressure
Pressure is equalized before switching columns to ensure uninterrupted compressed air at all times with no changes in pressure.
D Series1 Nano Dryers In Detail Energy Saving Dewpoint Control O
With this option, a dewpoint sensor is incorporated into the dryer providing the ultimate in energy savings.The outlet dewpoint is constantly monitored, allowing the cycle time to be adjusted depending on the actual moisture load - saving valuable purge air.

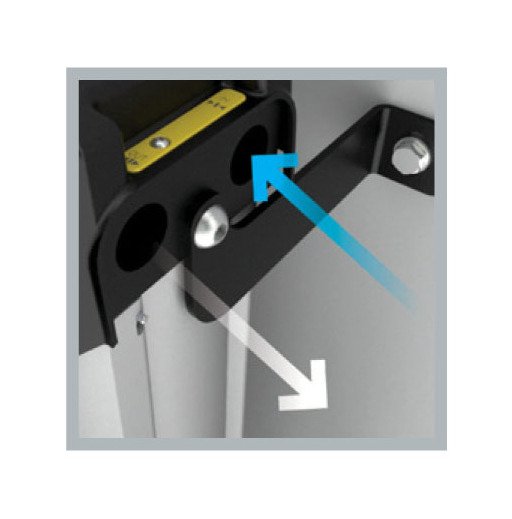

D Series1 Nano Dryers In Detail Floor Or Wall Installation
Can be floor or wall mounted - simply by rotating the feet 90º.
D Series1 Nano Dryers In Detail Maximum Corrosion Protection
Anodized extruded high tensile aluminum columns provide maximum protection for corrosive environments.
D Series1 Nano Dryers In Detail Optimum Dewpoint Performance
Air velocity (and therefore air to desiccant contact time) is carefully controlled via a pressure maintaining device to ensure optimum dewpoint performance.
D Series1 Nano Dryers In Detail Patented Combined Filter And Des
Water separation, inlet and outlet filtration and desiccant are all integrated into a single cartridge (eliminates up to 3 external filters and drains).Built in inlet filter improves flow distribution and lowers pressure drop.Snow storm filled desiccant provides maximum adsorption capacity.Easy to replace cartridges simplify maintenance requirements.
D Series1 Nano Dryers In Detail Plc Controlled Operation
The dryer is operated by a robust and reliable PLC control system, offering valuable features including 'power on', 'hours run' and 'service required' indicators.The PLC remembers where it stopped in the drying cycle to ensure consistently clean and dry air downstream.A standard energy saving feature starts and stops the dryer with a signal from the compressor or point-of-use equipment to eliminate purge loss when drying is not required.
D Series1 Nano Dryers In Detail Reliable High Performance Valves
Three way ball valves (NDL-010 to 050) or solenoid operated diaphragm valves (NDL-060 to 130) provide proven performance and reliability.
Features 0
D-Series1 dryers reliably give you:More for your money - everything needed for installation is in the boxMoisture & particulate protection of your production processLower life cycle costs - low energy costs and simplified maintenanceBuilt in dewpoint monitoring (optional)Space saving - can be easily wall mountedSafe and quiet operationPeace of mind - The most reliable product of its kind
Financing Approve Payments
Finance with Approve Payments
Manufacture 0
Ultra-high purity compressed air dryers are manufactured at our state of the art facility to the highest standards of build quality to ensure equipment reliability and high levels of performance.
Note 0
For rated flows at other inlet conditions or for -100 ºF (-70 ºC) dewpoint applications.If the dryer is to be installed downstream of an oil lubricated compressor, we recommend installing a nano F1 M01 (0.01 micron) coalescing filter immediately upstream of the dryer.For Correction Factors - To calculate the maximum rated flow for any model at operating conditions other than those above:Rated Flow x K1 x K2 x K3 = Rated Flow at new conditions (To be used as a rough guide only. All applications should be confirmed by n-psi. Contact us for sizing assistance).
Power Supply Alternating Current Ac Voltage
100 to 240 V
Power Supply Power Supply Frequency
50 to 60 Hz
Research And Development 0
A core element of our capabilities - founded on cumulative decades of practical engineering expertise - our R&D team is continually looking for improved performance and reliability.
Specifications Allowable Inlet Temperature
34.7 to 122 ºF
Specifications Allowable Working Pressure
58 to 232 psi
Specifications Correction Factor K1 At 105 Psi Inlet Air Pressur
1
Specifications Correction Factor K1 At 115 Psi Inlet Air Pressur
1.13
Specifications Correction Factor K1 At 130 Psi Inlet Air Pressur
1.25
Specifications Correction Factor K1 At 145 Psi Inlet Air Pressur
1.38
Specifications Correction Factor K1 At 160 Psi Inlet Air Pressur
1.50
Specifications Correction Factor K1 At 175 Psi Inlet Air Pressur
1.63
Specifications Correction Factor K1 At 190 Psi Inlet Air Pressur
1.75
Specifications Correction Factor K1 At 205 Psi Inlet Air Pressur
1.88
Specifications Correction Factor K1 At 220 Psi Inlet Air Pressur
2.00
Specifications Correction Factor K1 At 232 Psi Inlet Air Pressur
2.13
Specifications Correction Factor K1 At 60 Psi Inlet Air Pressure
0.63
