Our Heavy-Duty 17-24" Multi-Depth Stock Boxes are constructed from robust 200#/ECT-32-C kraft corrugated material, ensuring durable packaging solutions for various shipping and storage needs. Designed to save space, these cartons ship and store flat, optimizing logistical efficiency. 100% recyclable, these corrugated cartons prioritize sustainability without compromising on strength and reliability. The multi-depth feature adds versatility, allowing for flexible usage based on your packaging requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Depth
2.6 in | 65 mm
Dimensions Length
5.2 in | 132 mm
Dimensions Width
5.5 in | 140 mm
Financing Approve Payments
Finance with Approve Payments
General Operation General Operation

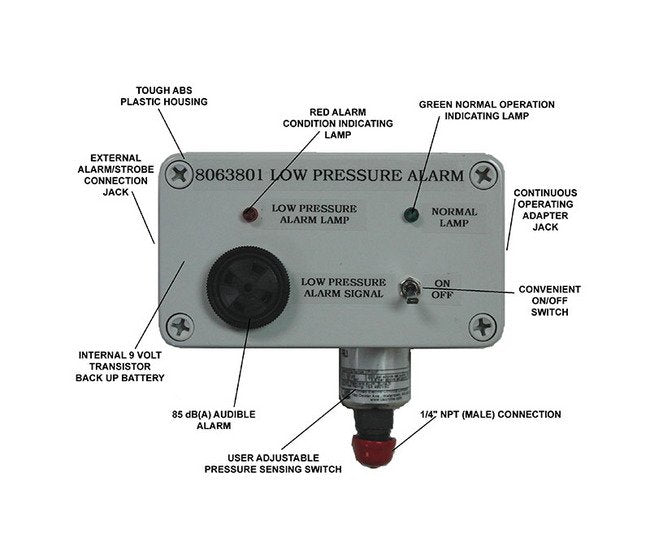

Model 8063801 is designed to sense a drop in pressure due to air compressor failure or some other failure that could cause a loss in pressure such as an air line rupturing, valve inadvertently being closed, etc. The unit, when mounted to any suitable airline via the 1/4" NPT pipe connection located at the base of the unit, will alarm once the pressure drops to the preset level. Both an audible and visual signal will indicate the pressure has decreased to the preset level or below. When the unit senses pressures above the alarm set point, a green LED indicates that the unit has power and is operating normally. This feature can also be used to test the function of the internal battery by unplugging the 80247 Continuous Operating Adapter and observing the green LED. A solid green light indicates ample power. This test can also be performed while the unit is in an alarm condition.
Installation And Adjustment Installation And Adjustment

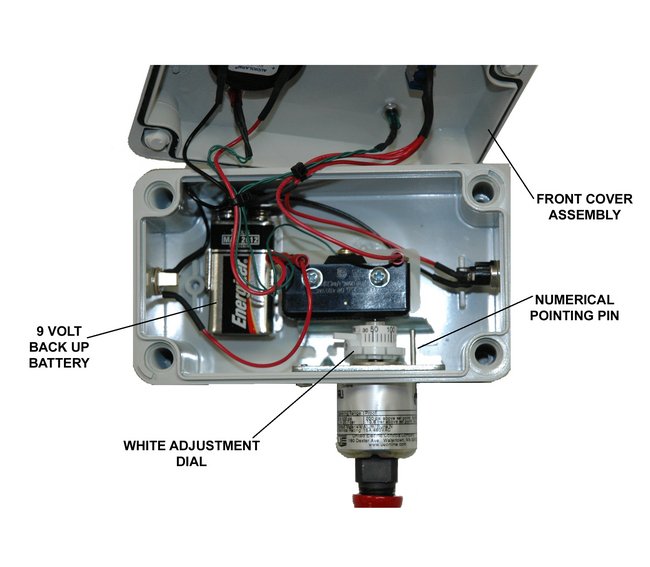

Locate a suitable place to mount or install the Model 8063801 unit and secure by threading the 1/4" NPT connection to the proper mating pipe size. Use ONLY THE FLAT AREA ON THE PRESSURE SWITCH to secure and tighten the unit. DO NOT OVER TIGHTEN - USE THREAD TAPE. Should the factory pre-set level be satisfactory, the unit is ready to operate by pressurizing the system and turning the "ON-OFF" Switch to the "ON" position. If pressure is above preset alarm level setting, the green LED should illuminate. Should you need to adjust the switch to some other setting, carefully loosen the four (4) screws located at the four corners of the housing and carefully lift off front cover to expose the pressure switch and internal wiring/battery. Locate the white adjustment dial located at the base of the pressure switch. Note: The numbers located on the adjustment dial are for approximation only - DO NOT assume the setting noted on the dial is the alarm set pressure. Adjust system pressure to alarm set point level desired and turn adjustment dial until the unit just activates the alarm. Slowly increase the system pressure above this setting until alarm stops. Slowly lower system pressure until alarm activates. Note system pressure, and if this is the desired alarm set point, the unit is ready for operation. Readjust if necessary and replace front cover taking care not to pinch any wiring between housing and cover.
Note Note
MST® Inc. Shall Not be Liable for any Injury, Loss or Damage, (Direct or Consequential), Arising out of the Use of or the Inability to Use this Product, Beyond the Replacement of Defective Materials or Workmanship. User of Supplied Air Respirators Should Evaluate their own Particular Application and Perform their Own Tests for Air Quality to Determine the Suitability for Use of this Product.
Optional Accessories Optional Accessories
Part Number - 8066901Description - Remote Alarm/Strobe (110 db(A)) with 20 ft wire/plug assemblyPart Number - 8008503Description - Remote Strobe with 20 ft wire/plug assembly
Over Range Pressure Note For Over Range Pressure
The Maximum pressure that may be applied continuously without causing damage and maintaining set point repeatability.
Over Range Pressure Over Range Pressure
400 psi | 27.6 bar
Proof Pressure Maximum Proof Pressure
600 psi | 41.4 bar
Proof Pressure Note For Proof Pressure
The Maximum pressure to which the pressure sensor may be occasionally subjected, which causes no permanent damage. The unit may require calibration (e.g. start-up, testing).
Proof Pressure Proof Pressure
500 psi | 34.5 bar
Specifications Ambient Operating Temperature Limits
0 to 160 ºF | -18 to 71 ºC
Specifications Electrical Requirements
Internal 9 Volt Transistor Battery80247 Continuous Operating Adapter
Specifications Enclosure Material
Acrylonitrile Butadiene Styrene (ABS)
Specifications Output Types
Audible | Visual
Specifications Piezo Alarm At 1 Feet Ft 03 Meter M Sound Level
85 dBA
Specifications Pressure Adjustment Range
30 to 300 psi | 2.1 to 20.7 bar
Specifications Pressure Connection Size
1/4 in
Specifications Pressure Connection Type
Male National Pipe Thread (MNPT)
Specifications Set Point Repeatability Of Adjustable Range
1 %
Specifications Shock
Set Point Repeats After 15 G, 10 millisecond Duration
Specifications Storage Temperature
-65 to 160 ºF | -54 to 71 ºC
Specifications Vibration
Set Point Repeats after 2.5 G, 5-500 CPS
Specifications Warning
The Alarm Set Point should be verified prior to each use to assure the unit is operating properly and no one has tampered with the device.
Specifications Web Price
640 USD
Specifications Weight
1 lb | 454 g
