Heavy-Duty 2.625 x 1.375 Inch Standard Chip Deflector

Name: Heavy-Duty 2.625 x 1.375 Inch Standard Chip Deflector
Brand: Bermar Associates, Inc.
SKU: STA-93df5b
Price: 49.99 USD
Availability: OutOfStock

SKU:STA-93df5b

Ensure machine ways' safety with our 16-gauge cold-rolled steel chip deflector. Custom sizes available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty 2.625 x 1.375 Inch Standard Chip Deflector by Bermar Associates, Inc. is expertly crafted from 16-gauge cold-rolled steel, ensuring superior protection for machine ways and wipers against hot metal chips. These deflectors also act as stiffeners, enhancing overall strength. Easy to install following the provided mounting instructions, these chip deflectors can be customized to meet specific size requirements, with or without hole patterns. Ideal for both consumer and institutional buyers seeking robust chip protection for their machinery.

Product Specifications

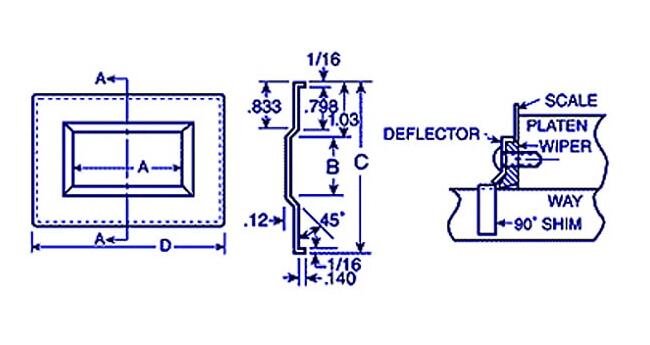

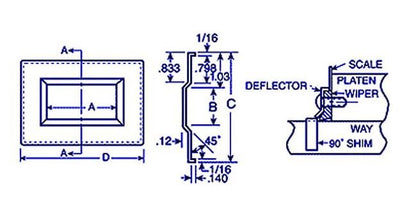

Mounting Instructions Mounting Instructions

Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90Âº shim under lip of deflector.Use 6" scale. Apply pressure 90Âº leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.

Specifications Dimension A

2.625 in

Specifications Dimension B

1.375 in

Specifications Materials

Cold Rolled Steel (CRS)

Specifications Material Thickness

16 gauge

Heavy-Duty 2.625 x 1.375 Inch Standard Chip Deflector
