Heavy Duty 2 Inch Inlet Diameter Line Vac Conveyor
Heavy Duty 2 Inch Inlet Diameter Line Vac Conveyor
SKU:HEA-c7137b
High-performance Heavy Duty Line Vac Conveyor for efficient material transport over long distances. Durable, compact, and versatile for various industrial applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy Duty 2 Inch Inlet Diameter Line Vac Conveyor
$399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 2 Inch Inlet Diameter Line Vac Conveyor
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

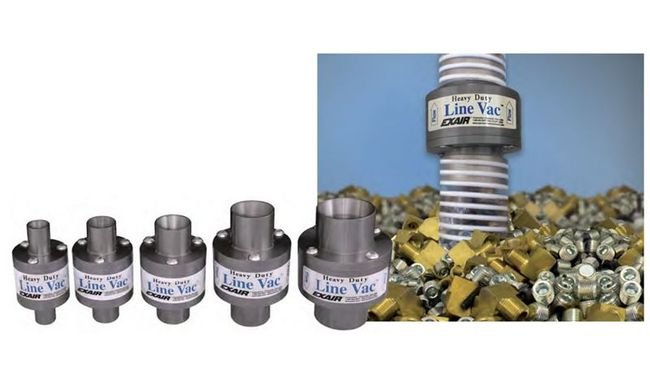

The Heavy Duty 2 Inch Inlet Diameter Line Vac Conveyor by EXAIR is a high-performance conveyor system designed for efficiently transporting materials over extended vertical and horizontal distances. Crafted from heavy-duty hardened alloy, this conveyor exhibits exceptional durability and wear resistance, outperforming standard conveyors. With a pressure rating of 80 psig and an air consumption of 75 SCFM, this conveyor ensures reliable and powerful material conveyance. Its compact design, corrosion resistance, and compatibility with standard hose, tube, and pipe make it ideal for a wide range of industrial applications including chip removal, material conveying, and waste trimming. Experience top-notch efficiency and reliability with the Heavy Duty Line Vac Conveyor.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
75 SCFM | 2124 SLPM
Specifications Air Inlet
3/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Corrosion Resistance
Good
Specifications Dimension E
2.13 in | 54 mm
Specifications Dimension F
1.25 in | 32 mm
Specifications Dimension H
1.50 in | 38 mm
Specifications Dimension I
1.17 in | 30 mm
Specifications Dimension J
2.34 in | 59 mm
Specifications Dimension K
0.28 in | 7 mm
Specifications Dimension L
1.48 in | 38 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
2.13 in | 54 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Hose Size
2 in | 51 mm
Specifications Inlet Size
2 in | 51 mm
Specifications Inside Diameter
1.75 in | 45 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Diameter
2 in | 51 mm
Specifications Outside Diameter
3.25 in | 83 mm
Specifications Overall Length
4.38 in | 111 mm
Specifications Overall Width
3 in | 76 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Vacuum Pressure
-42 inWc | -10 kPa
