Heavy Duty 3/4 NPT Threaded Line Vac Conveyor
Heavy Duty 3/4 NPT Threaded Line Vac Conveyor
SKU:HEA-50acd1
Transform ordinary pipes into powerful conveyors. Durable, compact, and high throughput capability. Ideal for industrial material handling.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy Duty 3/4 NPT Threaded Line Vac Conveyor
$499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 3/4 NPT Threaded Line Vac Conveyor
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

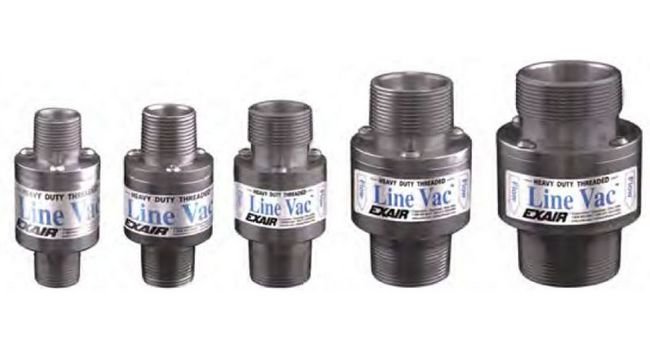

The Heavy Duty 3/4 NPT Threaded Line Vac Conveyor by EXAIR transforms standard pipe systems into efficient material conveying solutions ideal for industrial applications. Constructed from heavy-duty hardened alloy, this conveyor offers superior durability and can handle materials like parts, scrap, and trim with ease. With a vacuum pressure of -144 inWc and pressure rating of 80 psig, it ensures reliable performance. Its compact design, quiet operation, and high throughput capability make it a versatile and reliable choice for chip removal, hopper loading, and waste/trim removal tasks.
Product Specifications
Specifications Advantages
Available from Stock | Compact | Fits Standard Hose, Tube and Pipe | Hardened Alloy Construction | Highest Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
26 SCFM | 736 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
1.88 in | 48 mm
Specifications Dimension F1
1 in | 25 mm
Specifications Dimension F2
1 in | 25 mm
Specifications Dimension H
1 in | 25 mm
Specifications Dimension I
0.76 in | 19 mm
Specifications Dimension J
1.52 in | 39 mm
Specifications Dimension K
0.25 in | 6 mm
Specifications Dimension L
1.38 in | 35 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.44 in | 37 mm
Specifications Dimension O
0.20 in | 5 mm
Specifications Inlet Thread Size
3/4 NPT
Specifications Inside Diameter
0.50 in | 13 mm
Specifications Material
Heavy-Duty Hardened Alloy
Specifications Outlet Thread Size
3/4 NPT
Specifications Outside Diameter
1.88 in | 48 mm
Specifications Overall Length
3.88 in | 99 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pipe Size
3/4 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-144 inWc | -36 kPa
