Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder
Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder
SKU:MIN-9a201e
Upgrade to the Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder for efficient and trouble-free label winding operations.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder
$289.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

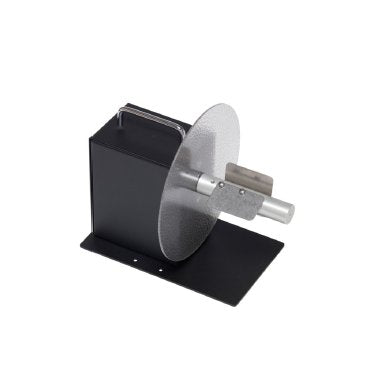

Upgrade your label winding process with the Heavy-Duty 3 Inch Core Mini-Cat Label Rewinder. Built with durable steel and aluminum, this reliable rewinder offers a maximum roll diameter of 8.5 inches, making it ideal for short to medium label runs. With a maximum speed of 102 inches per second and a 1-year warranty on the power adapter, this rewinder ensures efficient, trouble-free operation for years to come.
Product Specifications
Technical Specs Alternating Current Ac Input Voltage
120 V | 220 V
Technical Specs Available Options
Flange | MC (Outer Roll Guide) | OUT
Technical Specs Core Diameter
3 in | 76 mm
Technical Specs Depth
12.5 in | 317 mm
Technical Specs Height
9 in | 228 mm
Technical Specs Maximum Media Width
4.5 in | 114 mm
Technical Specs Maximum Roll Diameter
8.5 in | 216 mm
Technical Specs Maximum Roll Weight
12 lb | 5.5 kg
Technical Specs Maximum Speed
102 in/s | 2590 mm/s | 245 rpm
Technical Specs Maximum Torque
70 in·oz
Technical Specs Minimum Speed
0.5 in/s | 12 mm/s
Technical Specs Note For Core Diameter
Both MINI-CAT Models can also rewind corelessly.
Technical Specs Number Of Flanges
1
Technical Specs Output Adjustable Direct Current Dc Voltage
1.5 to 12 V
Technical Specs Power
7 W
Technical Specs Warranty
1 year limited warranty on Power Adapter | 5 year limited warranty on Rewinder
Technical Specs Weight
14 lb | 6.4 kg
Technical Specs Width
8.5 in | 216 mm
