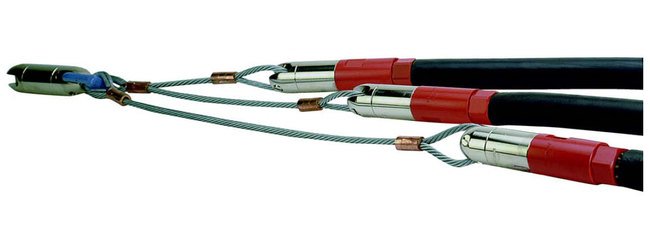

Heavy Duty 3-Way Pulling Harness Set
Heavy Duty 3-Way Pulling Harness Set
SKU:PUL-a38249
Enhance pulling tasks with our durable 3-way harness set, supporting up to 550 lbs per leg. Reliable and efficient performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty 3-Way Pulling Harness Set
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 3-Way Pulling Harness Set
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your pulling capabilities with our Heavy Duty 3-Way Pulling Harness Set. Each leg supports up to 550 lbs (2446 N), with a combined capacity of 1600 lbs (7117 N). Crafted with precision, featuring a lead ring diameter of 0.37 inches (10 mm) and a durable design for reliable performance. Ideal for heavy-duty pulling tasks with a max width of 2.25 inches (57 mm) and a leg diameter of 0.12 inches (3 mm). Ensure efficiency and safety with the strategically staggered legs for optimized load distribution.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Lead Ring Diameter C In
0.37
Specifications Lead Ring Diameter C Mm
10
Specifications Leg Diameter D In
0.12
Specifications Leg Diameter D Mm
3
Specifications Max Width A In
2.25
Specifications Max Width A Mm
57
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
14
Specifications Separation Between Legs B Mm
356
Specifications Working Load Combined Lb
1600
Specifications Working Load Combined N
7117
Specifications Working Load Per Leg Lb
550
Specifications Working Load Per Leg N
2446
