Heavy-Duty 36-inch Copper Nickel Inner Flanges
Heavy-Duty 36-inch Copper Nickel Inner Flanges
SKU:FLA-bed248
Premium 36" Copper Nickel Inner Flanges for industrial applications, DIN 86037 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Heavy-Duty 36-inch Copper Nickel Inner Flanges
$499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 36-inch Copper Nickel Inner Flanges
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

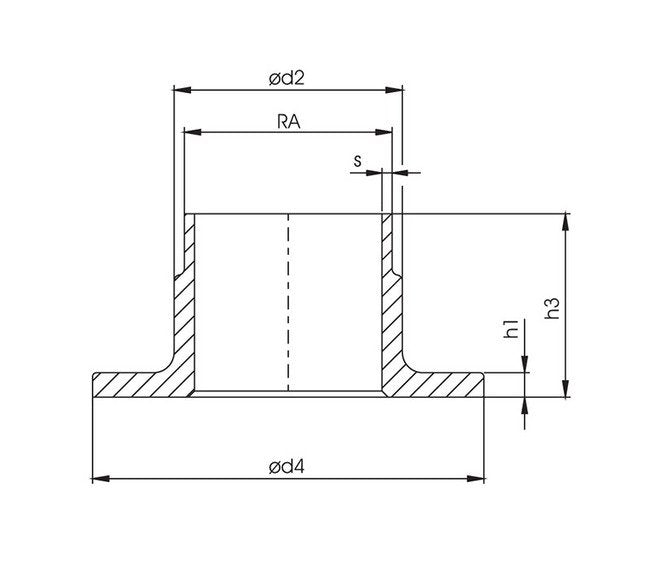

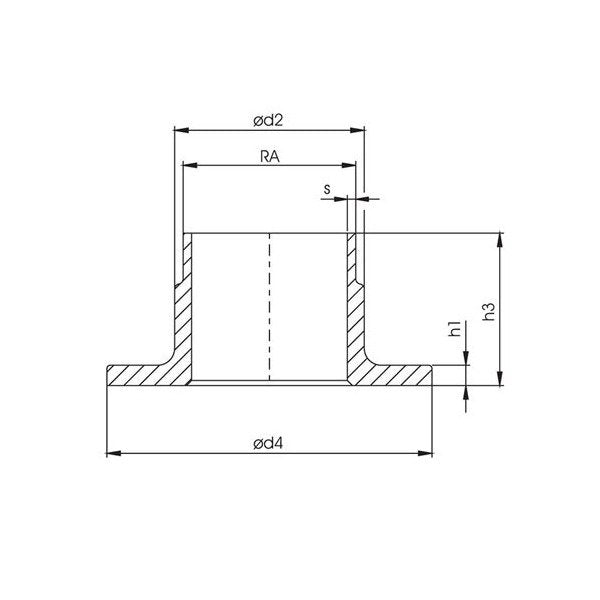

The Heavy-Duty 36-inch Copper Nickel Inner Flanges are expertly crafted to meet the demanding needs of industrial applications. With a nominal size of 36 inches, wall thickness of 8.0 mm, and a weight of 29.20 kg, these inner flanges adhere to DIN 86037 standards and are constructed from high-quality CuNi10Fe1.6Mn material. The precise engineering ensures a perfect fit with RA - OD of 914 mm, d2 of 918 mm, d4 of 1000 mm, h3 of 60 mm, and h1 of 14 mm. Ideal for sectors requiring robust and corrosion-resistant flanges, these are suitable for a wide range of projects.
Product Specifications
Specifications Body Material
CuNi10Fe1.6Mn
Specifications D2
918 mm
Specifications D4
1000 mm
Specifications H1
14 mm
Specifications H3
60 mm
Specifications Nominal Size
36 in
Specifications Norm
DIN 86037
Specifications Ra Od
914 mm
Specifications S
8.0 mm
Specifications Weight
29.20 kg
