Heavy Duty 360° Wall Mount Jib Cranes - Model 360 TDC
Heavy Duty 360° Wall Mount Jib Cranes - Model 360 TDC
SKU:REL-b7cf15
Increase efficiency with our Heavy Duty 360° Wall Mount Jib Crane - Model 360 TDC. Easy installation, robust construction, and 360° smooth boom rotation for seamless material handling.
Regular price
$3,799.99
Regular price
Sale price
$3,799.99
Unit price
per
Initiate Order
Heavy Duty 360° Wall Mount Jib Cranes - Model 360 TDC
$3,799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty 360° Wall Mount Jib Cranes - Model 360 TDC
$3,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your material handling efficiency with the Heavy Duty 360° Wall Mount Jib Crane - Model 360 TDC. This jib crane offers seamless 360° jib boom rotation mounted off your building column, eliminating the need for costly foundations or modifications. With a sturdy all-steel construction and double knuckle bearing design, it provides smooth and non-binding boom rotation. Transfer loads between adjacent bays effortlessly, reducing double handling. With a load capacity of 2000 lbs. and various mounting options, including concrete and column mast support, this crane is versatile and durable for heavy-duty applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

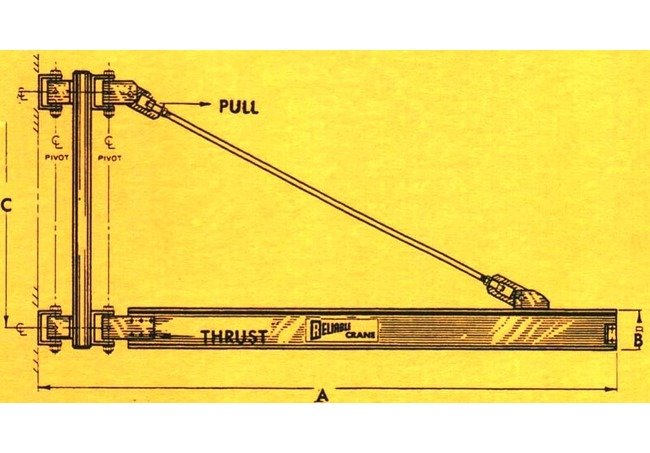

Specifications Boom Fitting D
3'-6"
Specifications Boom Size B
7 inches
Specifications Capacity
2000 lbs.
Specifications Hinge Centers C
4'-6"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM

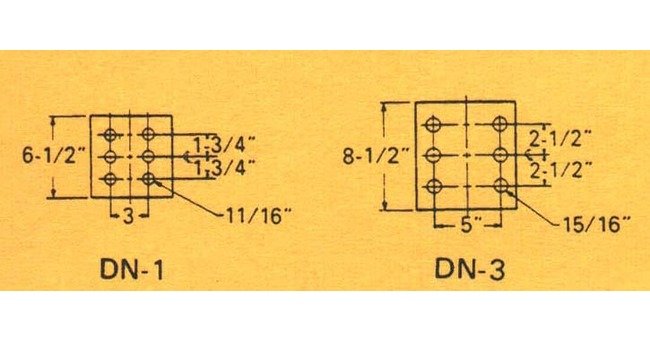

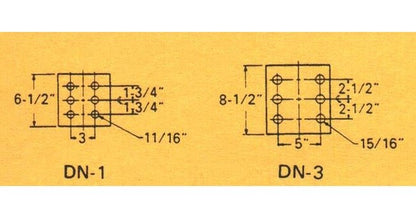

Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Thrust And Pull
7850 lbs.
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
520 lbs.
