Heavy-Duty 4.8mm U-Fix Aluminum/Stainless Steel Rivet
Heavy-Duty 4.8mm U-Fix Aluminum/Stainless Steel Rivet
SKU:UFI-243ab5
Highly versatile and durable 4.8mm U-Fix Aluminum/Stainless Steel Rivet for secure fastening in automotive and interior applications.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Heavy-Duty 4.8mm U-Fix Aluminum/Stainless Steel Rivet
$25.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty 4.8mm U-Fix Aluminum/Stainless Steel Rivet
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

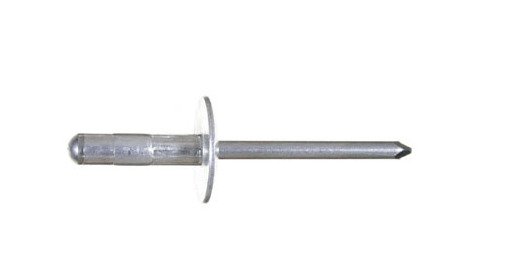

The Heavy-Duty 4.8mm U-Fix Aluminum/Stainless Steel Rivet is a reliable fastening solution designed for interior and automotive applications. Made of durable Aluminum Alloy ALmg 2.5 with a sturdy Stainless Steel AISI 430/434 mandrel, this rivet ensures secure and long-lasting connections. With a maximum grip range of 6.4mm and nominal shear force of 159kgf, it provides exceptional strength and stability. Ideal for securing rails, components in vehicles, and various other purposes, this rivet offers versatility and quality performance.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
