Heavy-Duty 8-Inch Strap Hinge for Institutional Use

Name: Heavy-Duty 8-Inch Strap Hinge for Institutional Use
Brand: Orr & Orr, Inc.
SKU: HIN-5ab9e0
Price: 19.99 USD
Availability: OutOfStock

SKU:HIN-5ab9e0

Enhance security with our Heavy-Duty 8-Inch Strap Hinge for robust performance and durability. Ideal for heavy doors and gates.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

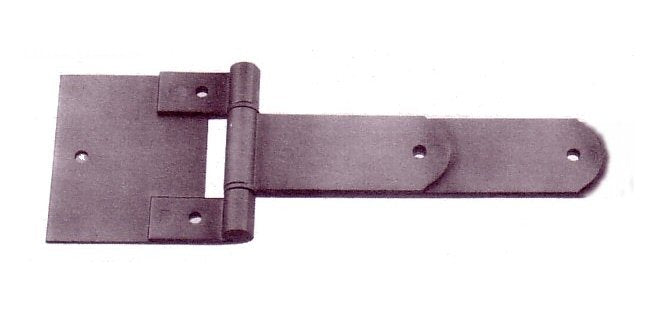

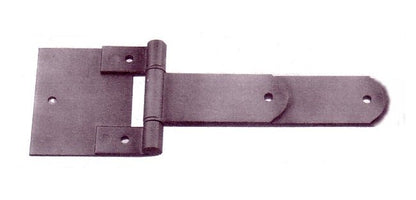

Upgrade your security with our Heavy-Duty 8-Inch Strap Hinge from the Square Corner Hinges collection. Constructed from durable steel with a zinc-plated finish, this hinge is designed for long-lasting performance in high-traffic areas. The 8-gauge strap and reverse bracket ensure robust support, making it ideal for heavy doors and gates. With a 1/2" diameter steel pin and precise 3 5/16" hole spacing, installation is efficient and secure. Trusted by government agencies and institutions, this hinge combines strength and reliability to meet rigorous security standards.

Product Specifications

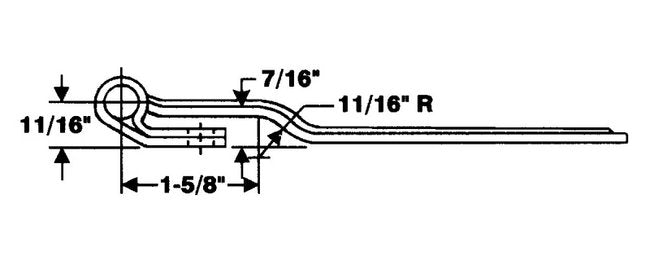

Specifications Bracket

8 Ga. x 4 1/2" x 1 5/8" from center of pin

Specifications Finish

Steel - Zinc plated

Specifications List Price

17.95 USD

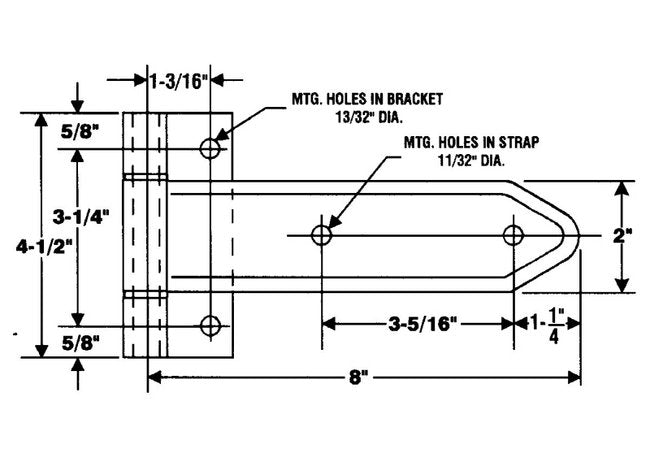

Specifications Mounting Holes On Strap C To C

3 5/16"

Specifications Pin

1/2" Dia. Steel

Specifications Strap

8 Ga. x 2" x 8"

Specifications Weight

2 lb
