Heavy Duty Adjustable Clevis Hanger - 30'' Pipe Size
Heavy Duty Adjustable Clevis Hanger - 30'' Pipe Size
SKU:PIP-6b006b
Heavy Duty Adjustable Clevis Hanger for stationary pipe lines, offering vertical adjustment without pipe removal. Durable carbon steel construction with multiple finish options.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Adjustable Clevis Hanger - 30'' Pipe Size
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Adjustable Clevis Hanger - 30'' Pipe Size
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

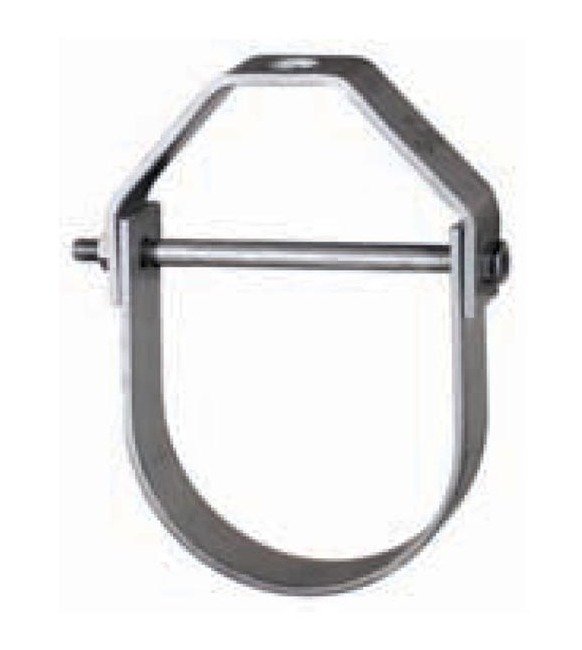

The Heavy Duty Adjustable Clevis Hanger is designed for the suspension of stationary pipe lines, offering vertical adjustment without pipe removal. Constructed from durable carbon steel with options for Plain, Galvanized, epoxy, or plastic coating finishes, this hanger ensures reliable performance in varying environments. Its innovative design features a yoke on the outside of the lower U-strap to prevent bolt bending and a rod with two nuts for enhanced stability. With a maximum load capacity of 6000 lbs and a temperature range of up to 650°F for Plain finish and 450°F for Galvanized and Epoxy finishes, this clevis hanger is a versatile and robust solution for industrial applications.

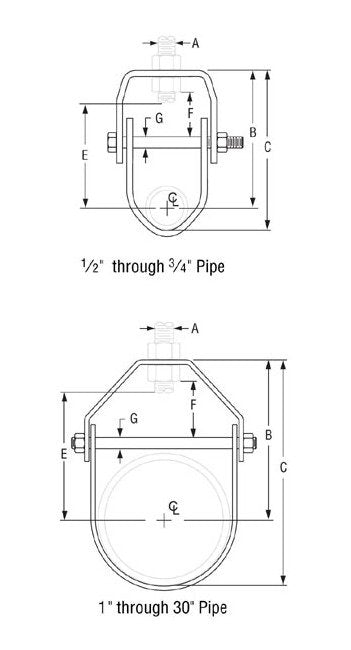

Product Specifications
Specifications Adjustment F
5 1/8 inches
Specifications Dimension B
24 3/16 inches
Specifications Dimension C
39 3/16 inches
Specifications Dimension G
1 1/4 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
6000 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
30 inches
Specifications Rod Size A
1 1/4 inches
Specifications Rod Take Out E
21 9/16 inches
Specifications Span
33 ft.
Specifications Weight
70.18 lbs
