Heavy Duty Air Winch A2 - 6000 lbs Capacity
Heavy Duty Air Winch A2 - 6000 lbs Capacity
SKU:RIG-622bd6
Powerful Model A2 Air Winch - 6000 lbs Capacity, 20 FPM, Self-locking Worm Gear, Safety Brake
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy Duty Air Winch A2 - 6000 lbs Capacity
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch A2 - 6000 lbs Capacity
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

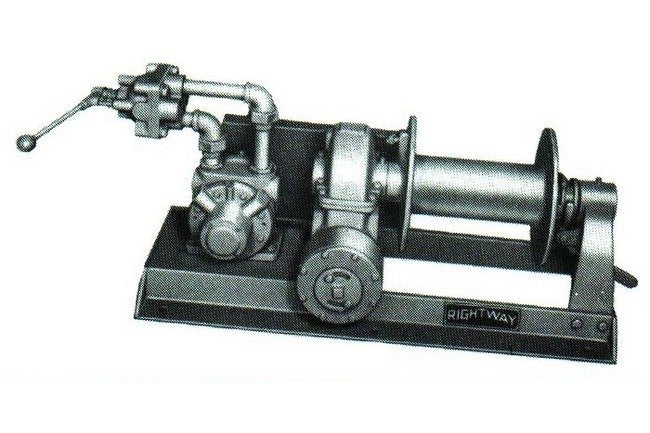

The Model A2 Heavy Duty Air Winch is a powerhouse designed for demanding applications. With a running capacity of 6000 lbs and a line speed of 20 FPM, this winch is built for reliability and efficiency. Featuring a self-locking worm gear reduction with oilbath lubrication and an automatic mechanical load type safety brake, it ensures safe and smooth operations in all weather conditions. The winch comes with a robust all-steel fabricated base providing maximum durability and a 5 to 1 structural safety factor, making it an ideal choice for heavy-duty lifting and pulling tasks. Optional equipment includes a hand-operated control valve, pendant remote control, and essential accessories like a filter-oiler, exhaust muffler, and air pressure regulator, offering versatility and convenience.
Product Specifications
Specifications Air Requirement
120 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
165 ft.
Specifications Full Drum
325 ft.
Specifications Line Speed
20 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
625 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
6000
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/2 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
