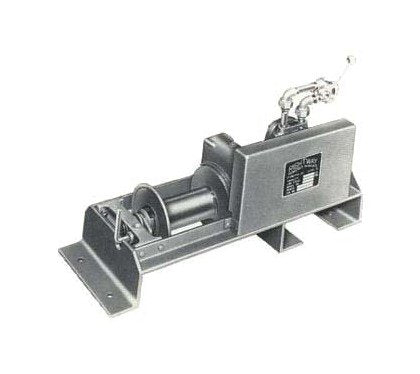

The Model A1 Heavy Duty Air Winch is a robust industrial tool designed for reliable lifting and pulling operations. Featuring a free spooling drum for effortless cable management and a self-locking worm gear reduction with oilbath lubrication, this winch ensures smooth and controlled performance in all weather conditions. With a 5 to 1 structural safety factor, all steel fabricated base, and optional equipment like a hand-operated control valve and pendant remote control, this winch is built for durability and versatility. Ideal for applications requiring electrical brake assistance, this winch meets the rigorous standards of government and institutional procurement.
Product Specifications
Specifications Air Requirement
50 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Full Drum
410 ft.
Specifications Line Speed
30 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
220 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
1000
Specifications Winch Height
20 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Free spooling drum for easy playing out of cable Self-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E1 and A1 winches All steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
