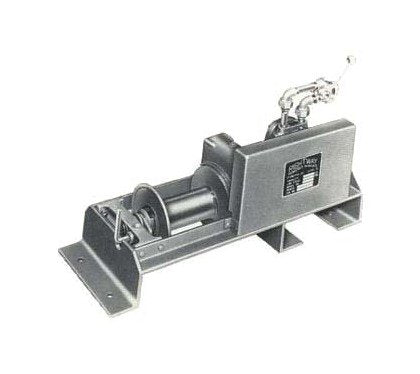

Heavy Duty Air Winch Model A1 - 3000 lbs Capacity
Heavy Duty Air Winch Model A1 - 3000 lbs Capacity
SKU:RIG-2f6fd0
Powerful 3000 lbs Heavy Duty Air Winch for lifting and pulling tasks. Self-locking worm gear reduction, durable construction, and optional control accessories make it ideal for industrial applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A1 - 3000 lbs Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A1 - 3000 lbs Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model A1 Heavy Duty Air Winch is a powerhouse designed for lifting and pulling tasks. With a running capacity of 3000 lbs and a line speed of 20 FPM, this winch is equipped with a free spooling drum for easy cable management. Featuring a self-locking worm gear reduction system with oil-bath lubrication, weather-resistant construction, and a steel fabricated base for maximum durability, this winch ensures reliable performance in rugged conditions. The included optional equipment such as the hand-operated control valve and pendant remote control enhance operational flexibility and safety. Ideal for applications requiring electrical brake systems, this winch is a practical and robust solution for industrial use.
Product Specifications
Specifications Air Requirement
80 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
110 ft.
Specifications Full Drum
200 ft.
Specifications Line Speed
20 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
265 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
3000
Specifications Winch Height
28 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/8 inches
Standard Features 0
Free spooling drum for easy playing out of cable Self-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E1 and A1 winches All steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
