Heavy Duty Air Winch Model A1 - 4000 lbs Capacity
Heavy Duty Air Winch Model A1 - 4000 lbs Capacity
SKU:RIG-5625e4
Heavy Duty Air Winch Model A1 - 4000 lbs Capacity, Self-locking Worm Gear, All-Weather Use, Steel Base, Optional Accessories
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A1 - 4000 lbs Capacity
$2,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A1 - 4000 lbs Capacity
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

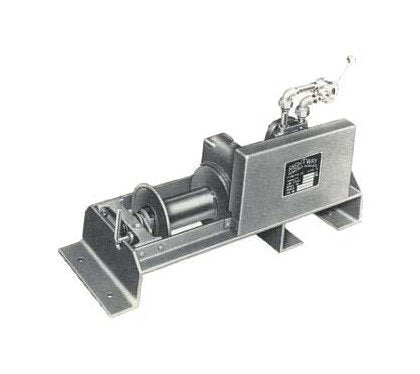

The Model A1 Heavy Duty Air Winch is built for rugged performance, featuring a free spooling drum for easy cable management and self-locking worm gear reduction with oilbath lubrication. With a running capacity of 4000 lbs and a line speed of 15 FPM, this winch is designed for lifting and pulling tasks. Equipped with standard features like all-weather usability, a steel fabricated base, and a 5 to 1 structural safety factor, this winch ensures maximum durability and reliability in challenging environments. Optional accessories include a hand-operated control valve, pendant remote control, filter-oiler, and more, providing versatility and ease of operation.
Product Specifications
Specifications Air Requirement
85 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
90 ft.
Specifications Full Drum
135 ft.
Specifications Line Speed
15 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
270 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
4000
Specifications Winch Height
28 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Free spooling drum for easy playing out of cable Self-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E1 and A1 winches All steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
