Heavy Duty Air Winch - Model A2
Heavy Duty Air Winch - Model A2
SKU:RIG-82beab
Heavy Duty Air Winch with 3000 lbs capacity, 25 FPM line speed, and all-weather durability for industrial use.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy Duty Air Winch - Model A2
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch - Model A2
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

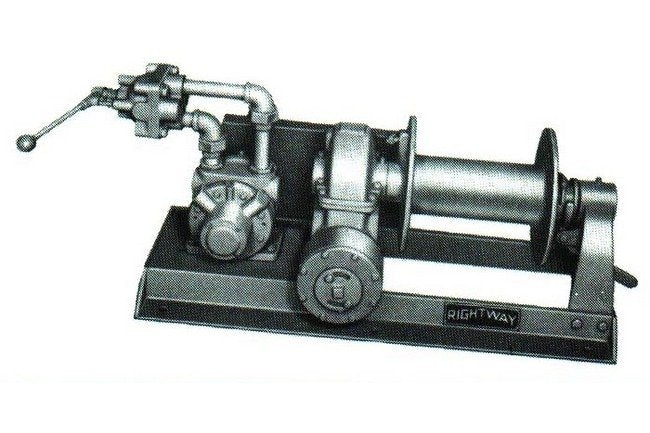

The Model A2 Heavy Duty Air Winch is designed for demanding industrial applications, featuring a free spooling drum with adjustable drag and self-locking worm gear reduction for precise control. With a running capacity of 3000 lbs and a line speed of 25 FPM, this winch ensures efficient operations. The all-weather design is ideal for rugged environments, supported by safety features like an automatic mechanical load-type brake and a steel-fabricated base with a 5 to 1 structural safety factor. This winch is suitable for lifting, pulling, and uses requiring an electrical brake.
Product Specifications
Specifications Air Requirement
110 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
180 ft.
Specifications Full Drum
375 ft.
Specifications Line Speed
25 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
410 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
3000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/8 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
