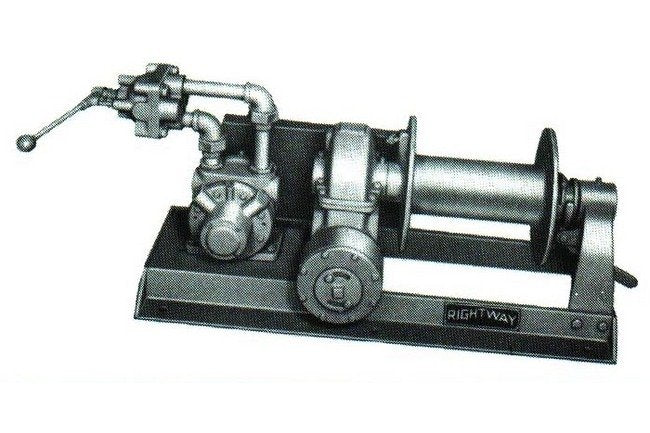

Heavy Duty Air Winch Model A2
Heavy Duty Air Winch Model A2
SKU:RIG-0acc85
Robust Heavy Duty Air Winch for reliable lifting and pulling. 2000 lbs running capacity, 20 FPM line speed, and self-locking worm gear reduction for optimal performance.
Regular price
$2,650.00
Regular price
Sale price
$2,650.00
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A2
$2,650.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A2
$2,650.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Air Winch Model A2 is a robust and reliable solution for demanding lifting and pulling applications. With a running capacity of 2000 lbs and a line speed of 20 FPM, this winch is designed for heavy-duty use. Featuring a self-locking worm gear reduction with oilbath lubrication, it ensures smooth and efficient operation in all weather conditions. The winch comes equipped with safety features such as an automatic mechanical load-type brake and a sturdy all-steel fabricated base for maximum durability. Additionally, it meets a minimum 5 to 1 structural safety factor, making it ideal for industrial and institutional settings.
Product Specifications
Specifications Air Requirement
65 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
210 ft.
Specifications Full Drum
500 ft.
Specifications Line Speed
20 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
375 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
2000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
