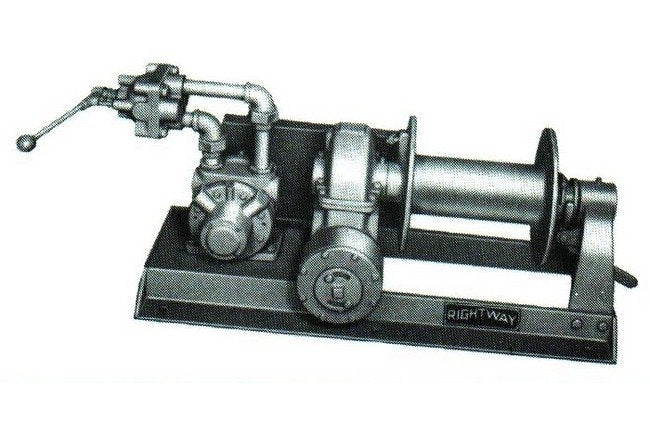

Heavy Duty Air Winch Model A2
Heavy Duty Air Winch Model A2
SKU:RIG-92927f
Heavy Duty Air Winch Model A2 - Reliable, rugged, and versatile solution for lifting and pulling applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A2
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A2
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Air Winch Model A2 is a rugged and durable solution designed for demanding lifting and pulling applications. With a running capacity of 750 lbs and a line speed of 50 FPM, this winch is equipped with a self-locking worm gear reduction system for reliable performance. It features an all-weather design, automatic mechanical load type safety brake, and a steel fabricated base with a 5 to 1 structural safety factor. The winch comes with standard features such as adjustable drag, oilbath lubrication, and is suitable for all weather use. Optional equipment includes hand-operated control valve, pendant remote control, and essential accessories. Ideal for electrical brake applications and suitable for horizontal, inverted ceiling, or vertical mounting.
Product Specifications
Specifications Air Requirement
50 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
325 ft.
Specifications Full Drum
1000 ft.
Specifications Line Speed
50 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
365 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
750
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
