Heavy Duty Air Winch Model A2
Heavy Duty Air Winch Model A2
SKU:RIG-a4f7ee
Heavy Duty Air Winch Model A2 - Rugged, durable, and high performance for lifting and pulling tasks. Self-locking worm gear reduction, safety brake, and all-steel base.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A2
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A2
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

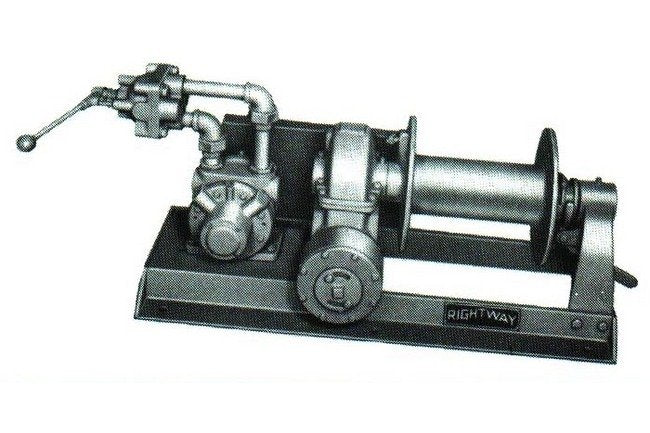

The Heavy Duty Air Winch Model A2 is a rugged and reliable solution for heavy lifting and pulling applications. With a running capacity of 4000 lbs and a line speed of 20 FPM, this winch is designed for durability and performance. Its self-locking worm gear reduction with oil bath lubrication ensures smooth operation in all weather conditions. Equipped with a safety brake, automatic mechanical load type, and an all-steel fabricated winch base, this model guarantees maximum durability with a minimum 5 to 1 structural safety factor. Optional equipment includes a hand-operated control valve, pendant remote control, filter-oiler, exhaust muffler, and air pressure regulator, providing versatility and control in various settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Requirement
120 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
160 ft.
Specifications Full Drum
350 ft.
Specifications Line Speed
20 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
415 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
4000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
