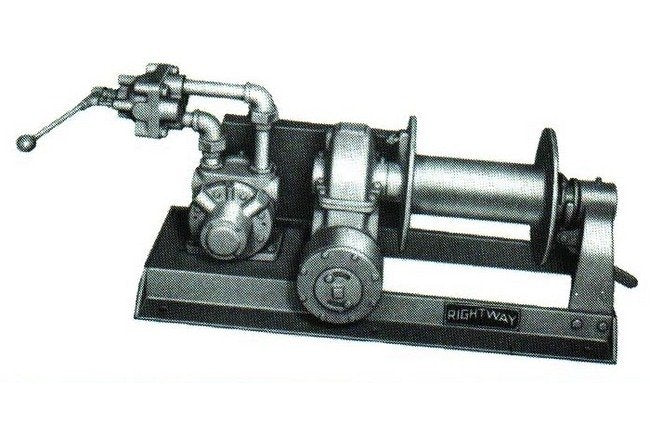

Heavy Duty Air Winch Model A2 - 750 lbs. Capacity
Heavy Duty Air Winch Model A2 - 750 lbs. Capacity
SKU:RIG-a6efa5
Heavy Duty Air Winch Model A2 - 750 lbs. Capacity, Self-locking worm gear, Safety brake, Steel base, All-weather use
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy Duty Air Winch Model A2 - 750 lbs. Capacity
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Air Winch Model A2 - 750 lbs. Capacity
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Air Winch Model A2 is a robust solution designed for demanding applications. With a running capacity of 750 lbs. and a line speed of 100 FPM, this winch is ideal for lifting and pulling tasks. Its self-locking worm gear reduction with oil bath lubrication ensures smooth and reliable operation in all weather conditions. Featuring a safety brake with automatic mechanical load type, this winch also boasts a steel fabricated base for maximum durability with a 5 to 1 structural safety factor. The winch comes standard with adjustable drag, making it versatile for various requirements.
Product Specifications
Specifications Air Requirement
100 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
325 ft.
Specifications Full Drum
1000 ft.
Specifications Line Speed
100 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
405 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
750
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
